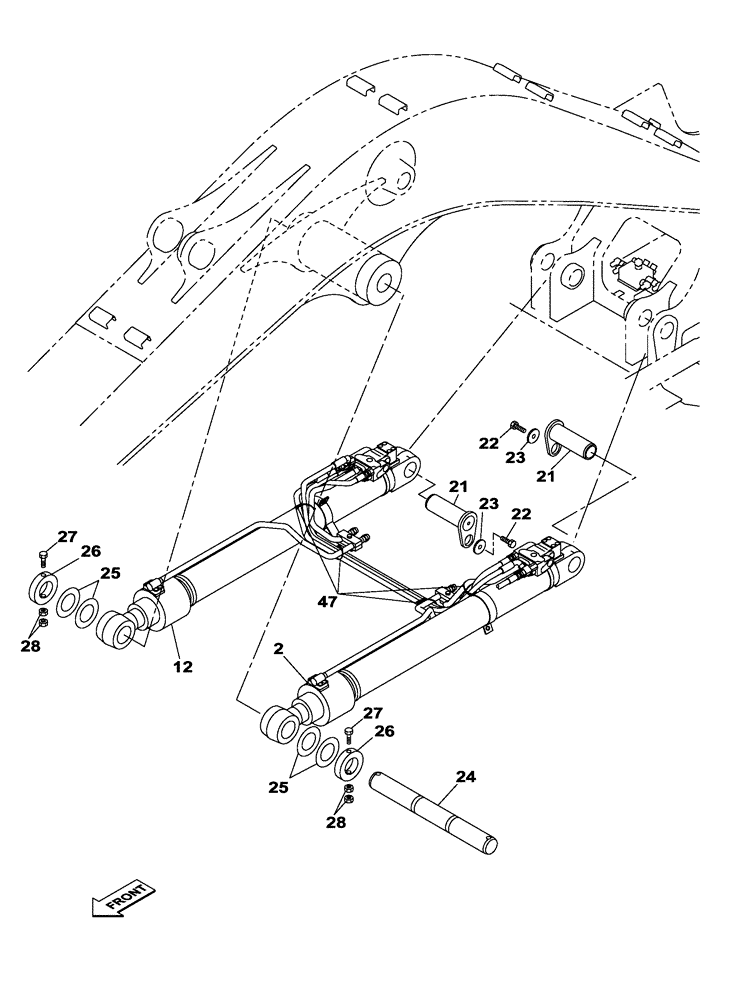

Запчасти Case CX160C (35.900.22[01]) - HYD. LINE - BOOM CYLINDER - OPTIONAL (35) - HYDRAULIC SYSTEMS

2

NSS

NOT SOLD SEPARAT

Cylinder Boom, Incl. In KLV11020

1шт.

12

NSS

NOT SOLD SEPARAT

Cylinder Boom, Incl. In KLV11000

1шт.

21

KLV11300

PIN

2шт.

22

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

23

157141A1

WASHER

2шт.

24

KLV10100

PIN

1шт.

25

161294A1

SHIM

4шт.

26

150138A1

COLLAR

2шт.

27

514-1112

BOLT,Hex, M16 x 1.5 x 140mm, Cl 10.9

2шт.

28

829-13416

NUT,M16 x 1.5, Cl 10

4шт.
