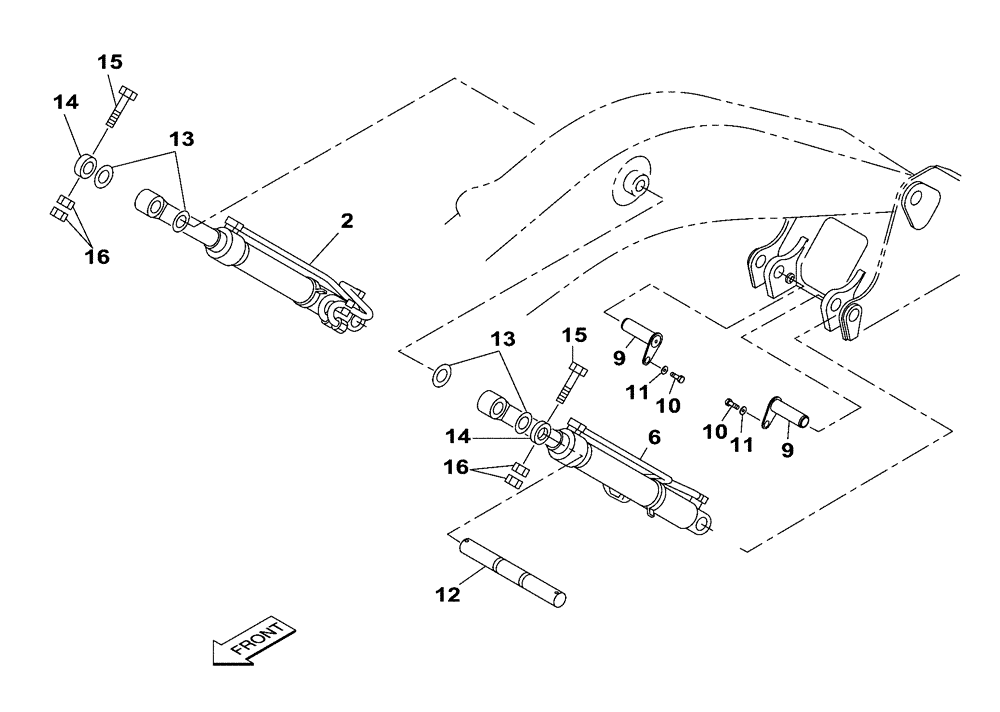

Запчасти Case CX160C (35.900.20) - HYD. LINE - BOOM CYLINDER (35) - HYDRAULIC SYSTEMS

2

KLV10960

HYDRAULIC CYLINDER

1шт.

2

KLV10960R

REMAN-HYD CYLINDER

CX160C CRAWLER EXCAVATOR - TIER 4 (NA) (4/12-)

1шт.

2

KLV10960C

CORE-HYD CYLINDER

Return Number

1шт.

6

KLV10980

HYDRAULIC CYLINDER

1шт.

6

KLV10980R

REMAN-HYD CYLINDER

CX160C CRAWLER EXCAVATOR, TIER 4 (NA) (4/12-)

1шт.

6

KLV10980C

CORE-HYD CYLINDER

Return Number

1шт.

9

KLV11300

PIN

2шт.

10

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

11

157141A1

WASHER

2шт.

12

KLV10100

PIN

1шт.

13

161294A1

SHIM

4шт.

14

150138A1

COLLAR

2шт.

15

514-1112

BOLT,Hex, M16 x 1.5 x 140mm, Cl 10.9

2шт.

16

829-13416

NUT,M16 x 1.5, Cl 10

4шт.
