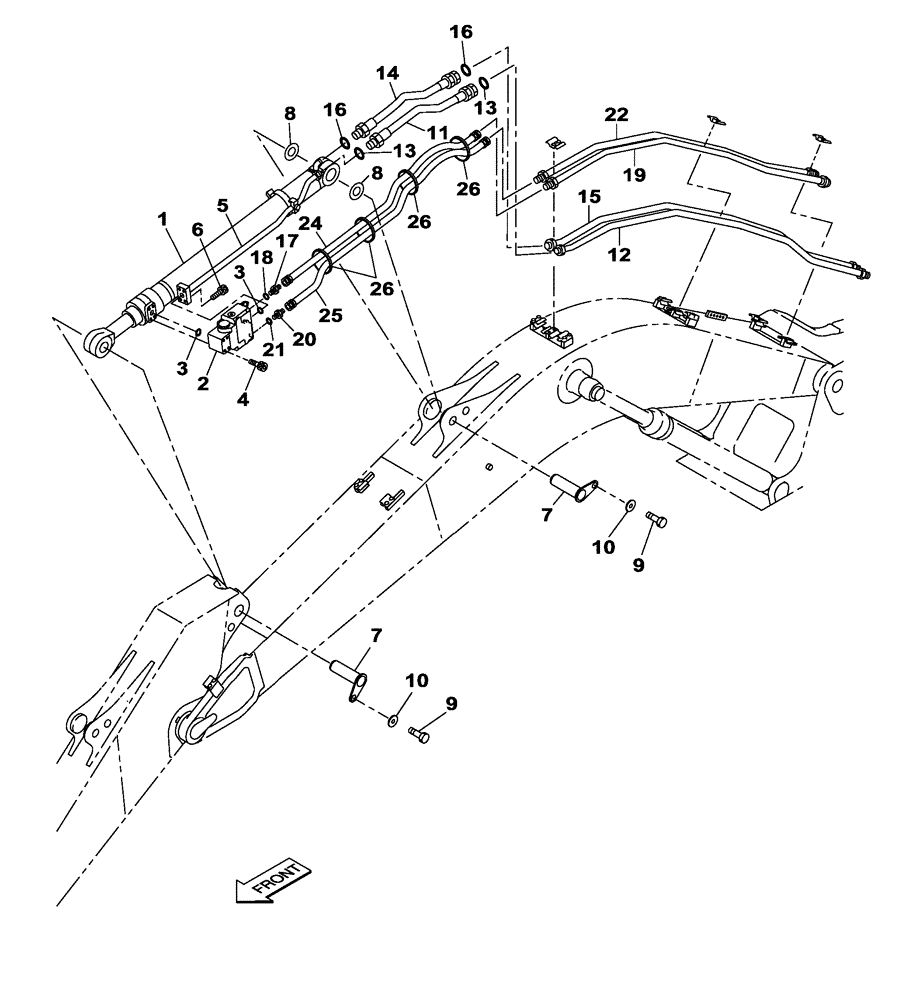

Запчасти Case CX160C (35.900.11) - HYD. LINE - DIPPER CYLINDER - OPTIONAL (35) - HYDRAULIC SYSTEMS

1

KLV11060

HYDRAULIC CYLINDER

1шт.

2

KRV11110

VALVE SECTION

1шт.

3

155210A1

O-RING

2шт.

4

862-10070

HEX SOC SCREW,M10 x 70mm, Cl 12.9

4шт.

5

KLV11720

HYD TUBE

1шт.

6

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

7

KLV11290

PIN

2шт.

8

159741A1

SHIM

2шт.

9

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

10

157141A1

WASHER

2шт.

11

KLV11420

HOSE ASSY.,19.00 mm ID x 900.00 mm

1шт.

12

KLV12500Y2

HYD TUBE,27.2mm X 20.8mm Adaptor

1шт.

13

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

14

KLV11420

HOSE ASSY.,19.00 mm ID x 900.00 mm

1шт.

15

KLV12500Y2

HYD TUBE,27.2mm X 20.8mm Adaptor

1шт.

16

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

17

152747A1

ADAPTER

Incl. 18

1шт.

18

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

19

KLV12350

HYD TUBE

1шт.

20

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 21

1шт.

21

154475A1

O-RING

1шт.

22

KLV12350

HYD TUBE

1шт.

24

KHJ17060

HYDRAULIC HOSE

2450 mm

1шт.

25

KHJ17060

HYDRAULIC HOSE

2450 mm

1шт.

26

150067A1

MOUNTING CLIP

150 mm

7шт.
