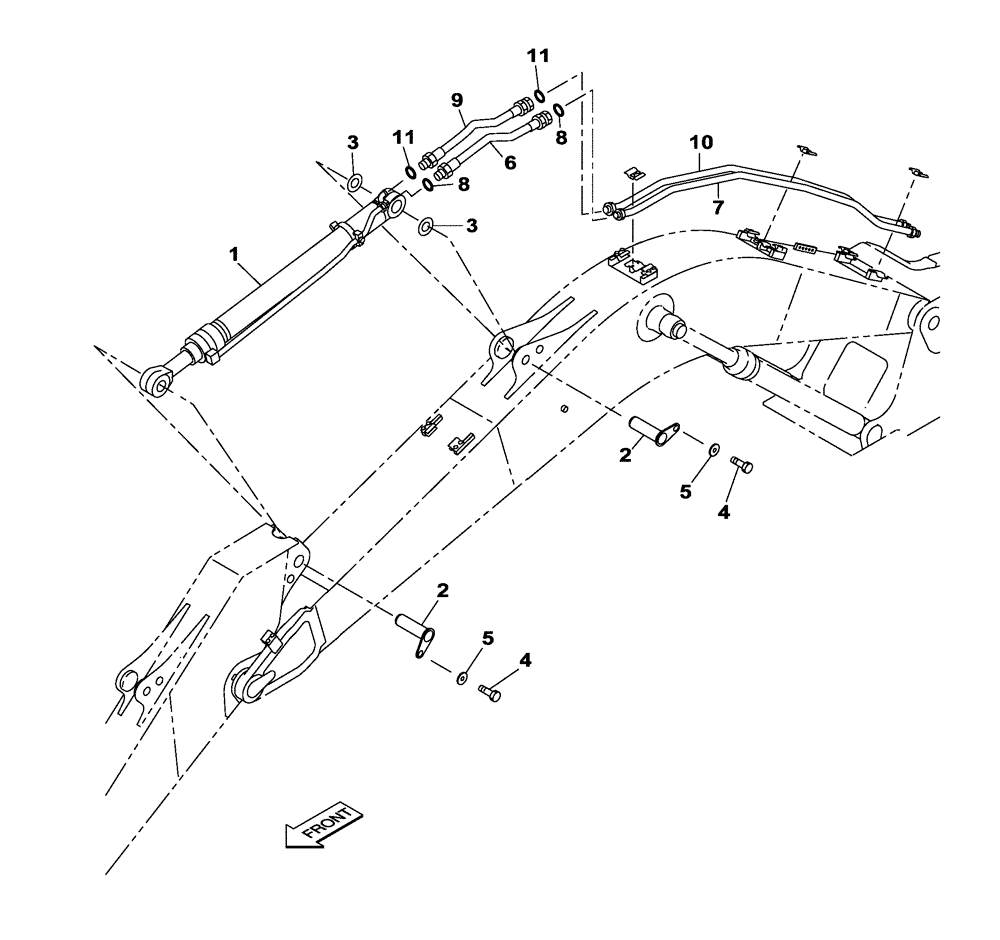

Запчасти Case CX160C (35.737.AE[01]) - DIPPER CYLINDER LINES (35) - HYDRAULIC SYSTEMS

1

KLV11040

HYDRAULIC CYLINDER

W/O Load Hold

1шт.

1

KLV11040R

REMAN-HYD CYLINDER

CX160C CRAWLER EXCAVATOR TIER 4 (4/12-)

1шт.

1

KLV11040C

CORE-HYD CYLINDER

Return Number

1шт.

2

KLV11290

PIN

2шт.

3

159741A1

SHIM

2шт.

4

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

5

157141A1

WASHER

2шт.

6

KLV11421

HYDRAULIC HOSE,19mm ID x 900mm L

1шт.

7

KLV12500Y2

HYD TUBE,27.2mm X 20.8mm Adaptor

1шт.

8

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

9

KLV11421

HYDRAULIC HOSE,19mm ID x 900mm L

1шт.

10

KLV12500Y2

HYD TUBE,27.2mm X 20.8mm Adaptor

1шт.

11

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.
