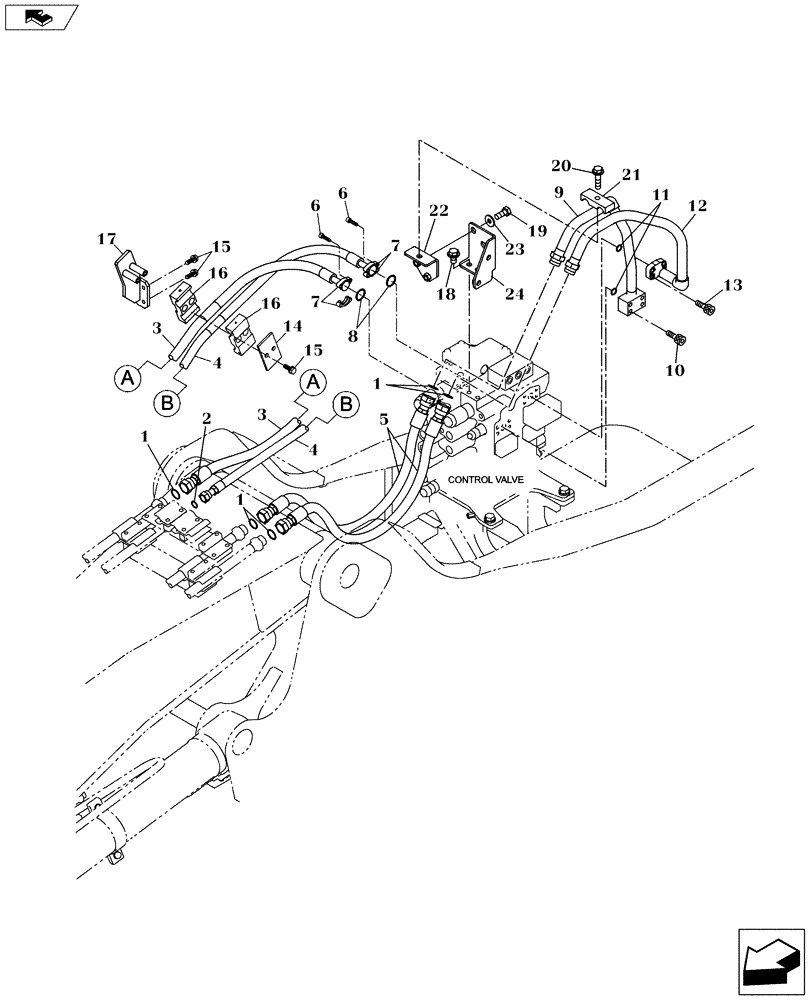

Запчасти Case CX160C (35.736.AC[10]) - HYDRAULIC LINES BUCKET & ARM (35) - HYDRAULIC SYSTEMS

1

KHJ1360

O-RING,0.07" Thk x 0.739" ID

5шт.

2

155204A1

O-RING

1шт.

3

KLJ10700

HOSE ASSY.,15.90 mm ID x 1380.00 mm

1шт.

4

KLJ10710

HOSE ASSY.,12.70 mm ID x 1540.00 mm

1шт.

5

KLJ10750

HOSE ASSY.,19.00 mm ID x 1090.00 mm

2шт.

6

862-8030

HEX SOC SCREW,M8 x 30mm, Cl 12.9

8шт.

7

161080A1

FLANGE

4шт.

8

161096A1

O-RING

2шт.

9

KNJ18070

HYD TUBE

1шт.

10

862-10055

HEX SOC SCREW,M10 x 55mm, Cl 12.9

4шт.

11

155210A1

O-RING

2шт.

12

KNJ18060

HYD TUBE

1шт.

13

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

14

KRH10210

PLATE

1шт.

15

166347A1

BOLT,Sems, M10 x 30mm

4шт.

16

KLJ10730

COLLAR CLAMP

2шт.

17

KLJ13090

BRACKET

1шт.

18

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

19

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

20

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

1шт.

21

152085A1

COLLAR

1шт.

22

KNJ18090

BRACKET

1шт.

23

151161A1

WASHER

2шт.

24

KNJ18080

BRACKET

1шт.
