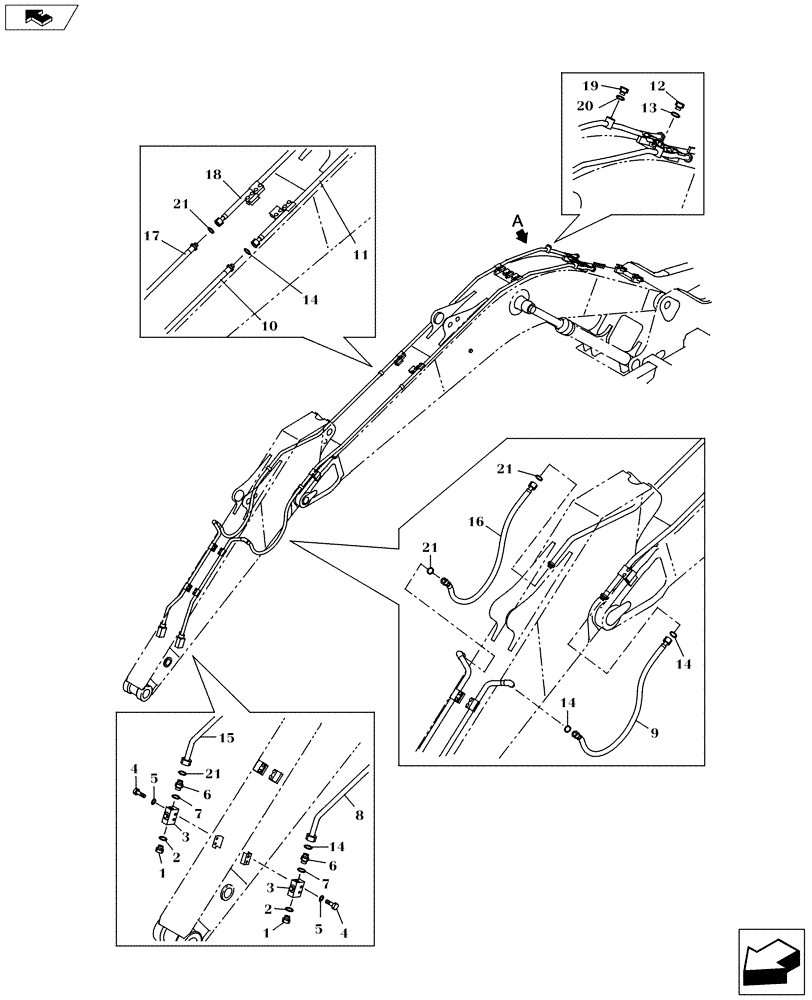

Запчасти Case CX160C (35.736.AC[08]) - OPTION LINE - LONG (35) - HYDRAULIC SYSTEMS

1

152924A1

PLUG

2шт.

2

154503A1

O-RING

2шт.

3

KHV10710

VALVE

2шт.

4

827-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 10.9

4шт.

5

150811A1

WASHER

4шт.

6

KHJ1348

ADAPTER

2шт.

7

154503A1

O-RING

2шт.

8

KLV12400

HYD TUBE,27.2mm X 20.8mm Adaptor and elbow

1шт.

9

KLV12920

HOSE ASSY.,19.00 mm ID x 1650.00 mm

1шт.

10

KLV12380

HYD TUBE,20.8 mm ID x 27.2 mm OD Adaptor

1шт.

11

KLV12360

HYD TUBE,27.2X20.8 Adaptor and elbow

1шт.

11

KLV13700

HYD TUBE,Dia 27.2

1шт.

12

152924A1

PLUG

1шт.

13

154503A1

O-RING

1шт.

14

KHJ1360

O-RING,0.07" Thk x 0.739" ID

4шт.

15

KLV12410

HYD TUBE,27.2mm X 20.8mm Adaptor

1шт.

16

KLV12920

HOSE ASSY.,19.00 mm ID x 1650.00 mm

1шт.

17

KLV12390

HYD TUBE,27.2mm X 20.8mm Adaptor

1шт.

18

KLV12370

HYD TUBE,27.2X30.8 Adaptor and elbow

1шт.

18

KLV13710

HYD TUBE,Dia 27.2

1шт.

19

152924A1

PLUG

1шт.

20

154503A1

O-RING

1шт.

21

KHJ1360

O-RING,0.07" Thk x 0.739" ID

4шт.
