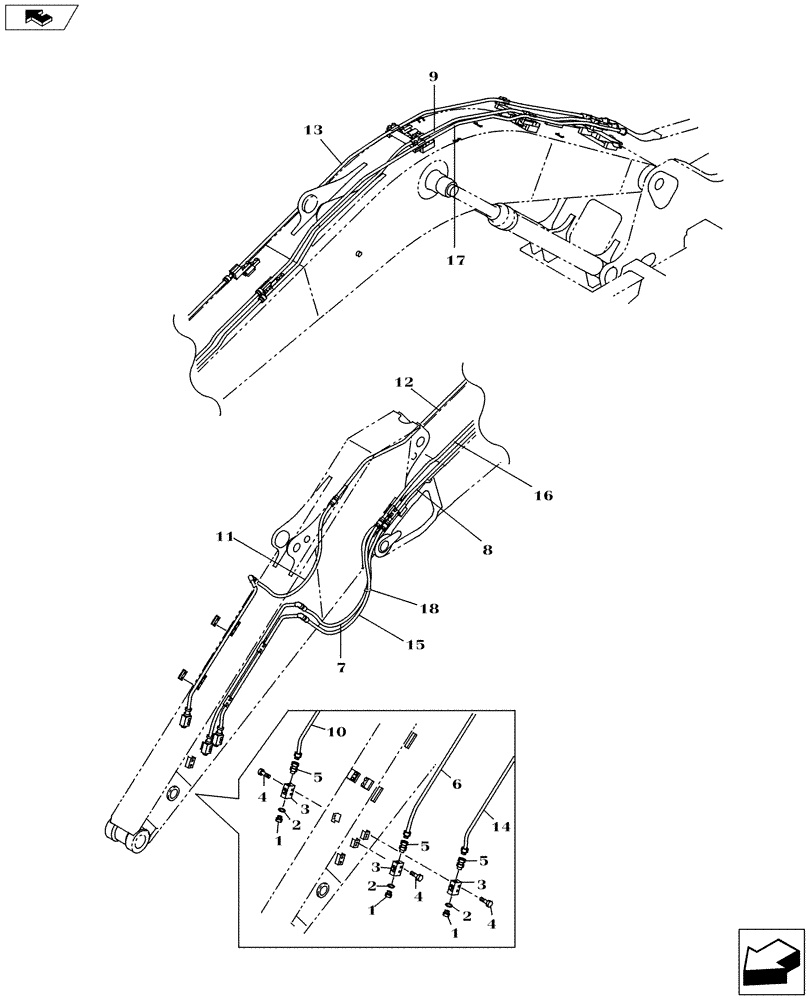

Запчасти Case CX160C (35.736.AC[05]) - SECOND OPTION LINE - LONG 3.05 M (35) - HYDRAULIC SYSTEMS

1

159085A1

PLUG

3шт.

2

154487A1

O-RING

3шт.

3

KHV10440

VALVE

3шт.

4

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

6шт.

5

KHJ1939

FITTING

3шт.

6

KLV12470

HYD TUBE,21.7mm X 16.1mm Adaptor and elbow

1шт.

7

KLV12930

HOSE ASSY.,12.70 mm ID x 1650.00 mm

1шт.

7

KBV14860

HYDRAULIC HOSE,12.70 mm ID x 1700.00 mm

1шт.

8

KLV12450

HYD TUBE,21.7mm X 16.1mm Adaptor

1шт.

9

KLV14180

HYD TUBE,Dia 21.7

1шт.

9

KLV14180

HYD TUBE,Dia 21.7

1шт.

10

KLV12480

HYD TUBE,21.7mm X 16.1mm Adaptor and elbow

1шт.

11

KLV12930

HOSE ASSY.,12.70 mm ID x 1650.00 mm

1шт.

11

KBV14860

HYDRAULIC HOSE,12.70 mm ID x 1700.00 mm

1шт.

12

KLV12460

HYD TUBE,21.7mm X 16.1mm Adaptor

1шт.

13

KLV12430

HYD TUBE,21.7mm X 16.1mm Adaptor

1шт.

14

KLV12490

HYD TUBE,21.7mm X 16.1mm Adaptor and elbow

1шт.

15

KLV12940

HOSE ASSY.,12.70 mm ID x 1700.00 mm

1шт.

15

KBV14860

HYDRAULIC HOSE,12.70 mm ID x 1700.00 mm

1шт.

16

KLV12450

HYD TUBE,21.7mm X 16.1mm Adaptor

1шт.

17

KLV14190

HYD TUBE,Dia 21.7

1шт.

17

KLV14190

HYD TUBE,Dia 21.7

1шт.

18

150496A1

MOUNTING CLIP

1шт.
