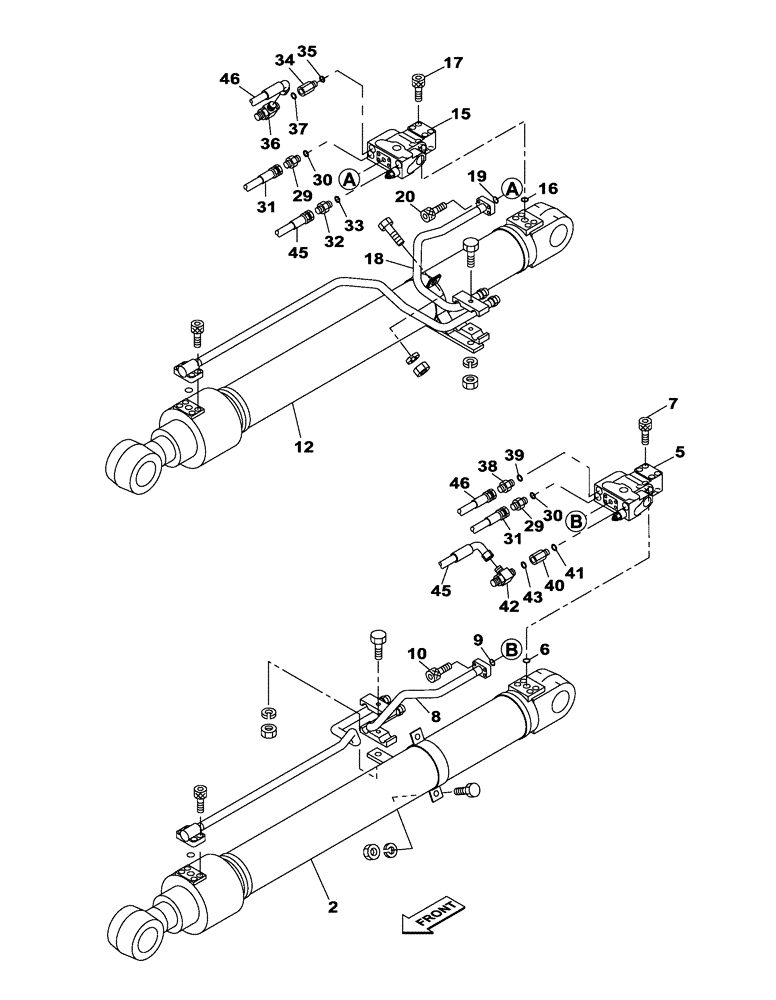

Запчасти Case CX160C (35.736.AC[02]) - BOOM CYLINDER LINES (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
2
KLV11020
HYDRAULIC CYLINDER
1шт.
5
KNV12850
VALVE SECTION
1шт.
6
155210A1
O-RING
1шт.
7
862-10060
HEX SOC SCREW,M10 x 60mm, Cl 12.9
4шт.
8
KLV11910
HYD TUBE
LH
1шт.
9
161096A1
O-RING
1шт.
10
862-8025
HEX SOC SCREW,M8 x 25mm, Cl 12.9
4шт.
12
KLV11000
HYDRAULIC CYLINDER
1шт.
15
KNV12850
VALVE SECTION
1шт.
16
155210A1
O-RING
1шт.
17
862-10060
HEX SOC SCREW,M10 x 60mm, Cl 12.9
4шт.
18
KLV11920
HYD TUBE
RH
1шт.
19
161096A1
O-RING
1шт.
20
862-8025
HEX SOC SCREW,M8 x 25mm, Cl 12.9
4шт.
29
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl 30
2шт.
30
154467A1
O-RING,10.8mm ID x 2.4mm Width
NBR70K6 10.80IDX240
2шт.
31
KLV13680
HOSE ASSY.
1450 mm
1шт.
32
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl 33
1шт.
33
154467A1
O-RING,10.8mm ID x 2.4mm Width
NBR70K6 10.80IDX240
1шт.
34
162525A1
STUD
Incl 35
1шт.
35
154467A1
O-RING,10.8mm ID x 2.4mm Width
NBR70K6 10.80IDX240
1шт.
36
159497A1
TEE
Incl 37
1шт.
37
154467A1
O-RING,10.8mm ID x 2.4mm Width
NBR70K6 10.80IDX240
1шт.
38
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl 39
1шт.
39
154467A1
O-RING,10.8mm ID x 2.4mm Width
NBR70K6 10.80IDX240
1шт.
40
162525A1
STUD
Incl 41
1шт.
41
154467A1
O-RING,10.8mm ID x 2.4mm Width
NBR70K6 10.80IDX240
1шт.
42
159497A1
TEE
Incl 43
1шт.
43
154467A1
O-RING,10.8mm ID x 2.4mm Width
NBR70K6 10.80IDX240
1шт.
45
KHJ17070
HYDRAULIC HOSE
1400 mm
1шт.
46
KHJ17070
HYDRAULIC HOSE
1400 mm
1шт.
Выбрано товаров: 31
