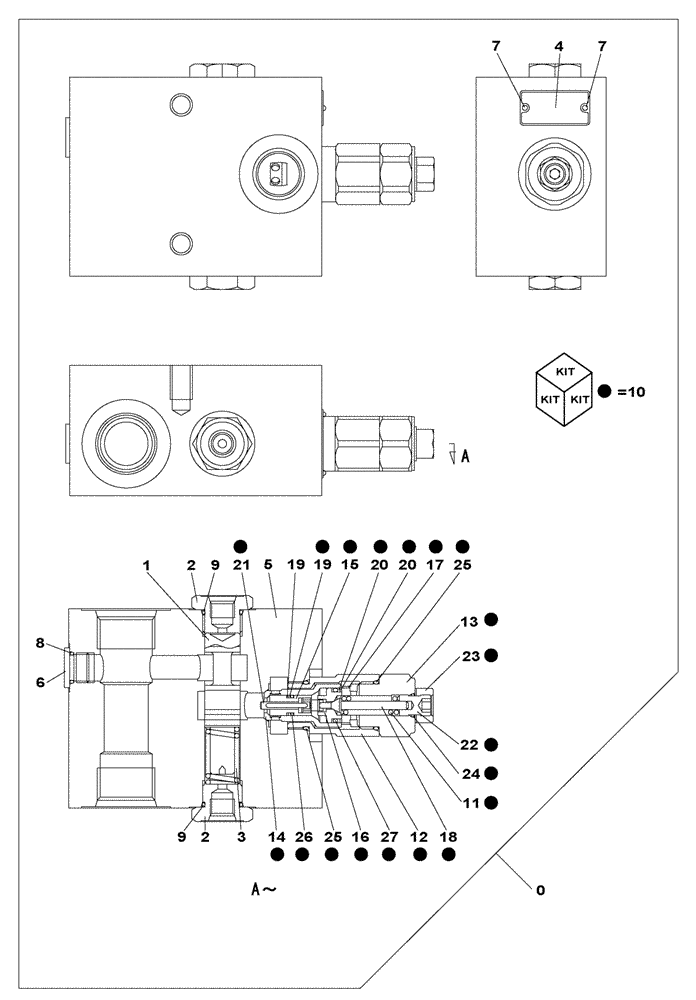

Запчасти Case CX160C (35.359.10) - VALVE SHUT-OFF - OPTIONAL (35) - HYDRAULIC SYSTEMS

0

KHJ10410

VALVE SECTION

Incl. 1 - 10, 23 - 27

1шт.

1

TIP0002072

SPOOL

1шт.

2

LK005490

PLUG

2шт.

3

LG005790

COMPRESSION SPRING

1шт.

5

TIP0002073

BODY

1шт.

6

155515A1

PLUG

1шт.

8

154475A1

O-RING

1шт.

9

154491A1

O-RING

2шт.

10

KHJ15850

VALVE PRESSURE RELIE

Incl. 23 - 27

1шт.

11

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

1шт.

12

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

1шт.

13

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

1шт.

14

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

1шт.

15

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

1шт.

16

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

1шт.

17

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

1шт.

18

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

1шт.

19

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

2шт.

20

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

2шт.

21

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

1шт.

22

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

1шт.

23

174R012SR

JAM NUT

1шт.

24

154463A1

O-RING

1шт.

25

155223A1

O-RING

2шт.

26

154457A1

O-RING

1шт.

27

154481A1

O-RING

1шт.
