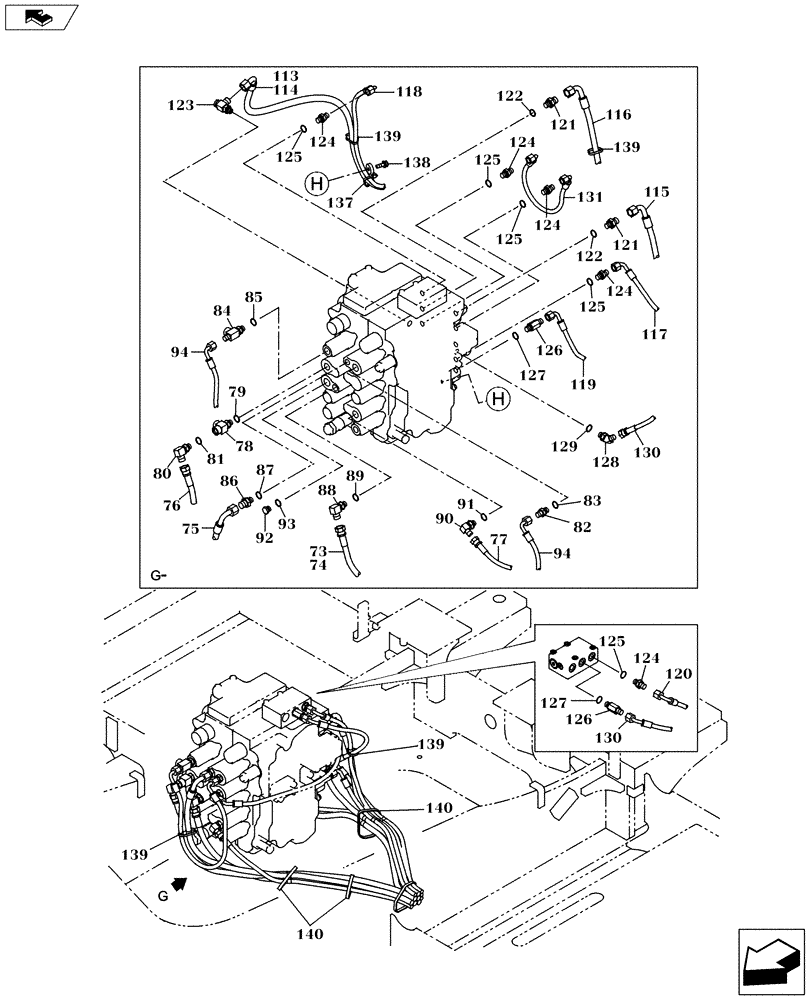

Запчасти Case CX160C (35.357.AK[04]) - PILOT LINE - STANDARD (35) - HYDRAULIC SYSTEMS

73

NSS

NOT SOLD SEPARAT

Hose Assy, Incl in KG0LJ344

1шт.

74

KHJ13810

HYDRAULIC HOSE,9.52 mm ID x 1150.00 mm

1шт.

75

KHJ2624

HOSE

1шт.

76

KHJ15490

HYDRAULIC HOSE

1шт.

77

KHJ2050

HOSE,6.3mm ID x 1000mm L

1шт.

78

KHJ12530

TEE

1шт.

79

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

80

153559A1

ELBOW

1шт.

81

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

82

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

1шт.

83

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

84

167666A1

FITTING

1шт.

85

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

86

152747A1

ADAPTER

1шт.

87

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

88

153559A1

ELBOW

1шт.

89

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

90

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

1шт.

91

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

92

159002A1

PLUG

1шт.

93

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

94

NSS

NOT SOLD SEPARAT

Nylon Hose, Incl in KG0LJ344

1шт.

113

NSS

NOT SOLD SEPARAT

Hose Assy, Incl in KG0LJ344

1шт.

114

KHJ11580

HYDRAULIC HOSE,9.52 mm ID x 1350.00 mm

1шт.

115

KHJ23950

HOSE ASSY.

1шт.

116

KHJ11570

HYDRAULIC HOSE,9.52 mm ID x 1300.00 mm

1шт.

117

KHJ2091

HOSE

1шт.

118

KHJ2096

FLEXIBLE HOSE

1шт.

119

KHJ2036

HOSE

1шт.

120

KHJ2094

HOSE

1шт.

121

152747A1

ADAPTER

2шт.

122

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

123

KHJ11560

TEE

1шт.

124

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

5шт.

125

154467A1

O-RING,10.8mm ID x 2.4mm Width

5шт.

126

162554A1

FITTING

2шт.

127

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

128

150933A1

ELBOW

1шт.

129

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

130

KHJ16200

HYDRAULIC HOSE,6.35 mm ID x 400.00 mm

1шт.

131

KHJ13820

HYDRAULIC HOSE,6.35 mm ID x 420.00 mm

1шт.

137

KHR2584

CLAMP

1шт.

138

KHJ1215

BOLT,Spcl

2шт.

139

150496A1

MOUNTING CLIP

4шт.

140

150071A1

MOUNTING CLIP

6шт.
