(35.353.AD[05]) - TRAVEL MOTOR & REDUCTION GEAR

Запчасти Case CX160C (35.353.AD[05]) - TRAVEL MOTOR & REDUCTION GEAR (35) - HYDRAULIC SYSTEMS

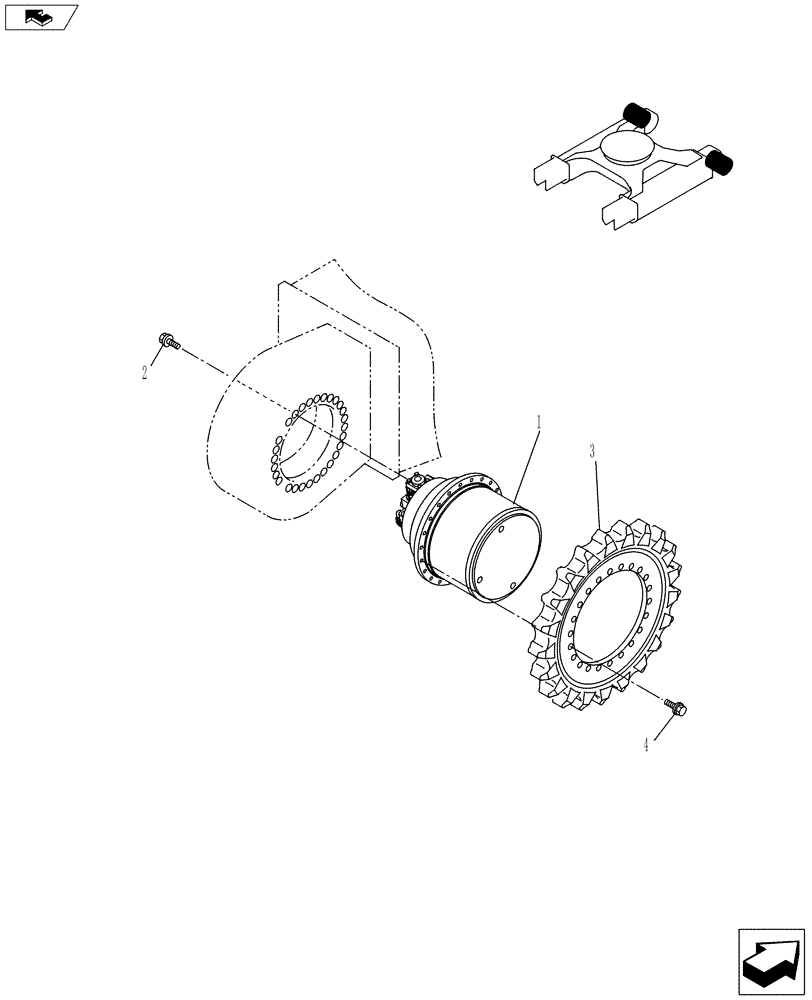

Схема запчастей Case CX160C - (35.353.AD[05]) - TRAVEL MOTOR & REDUCTION GEAR (35) - HYDRAULIC SYSTEMS
3
1
home
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KLA10650

HYDRAULIC MOTOR

2шт.

1

KLA10650R

REMAN-MOTO REDUCTION

CX160C CRAWLER EXCAVATOR TIER 4 (NA) (4/12-)

2шт.

1

KLA10650C

CORE-MOTO-REDUCTION UNIT

Return Number

2шт.

2

165930A1

BOLT,Sems, M16 x 55mm

56шт.

3

KRA12900

SPROCKET

2шт.

4

165930A1

BOLT,Sems, M16 x 55mm

44шт.

Выбрано товаров: 6
