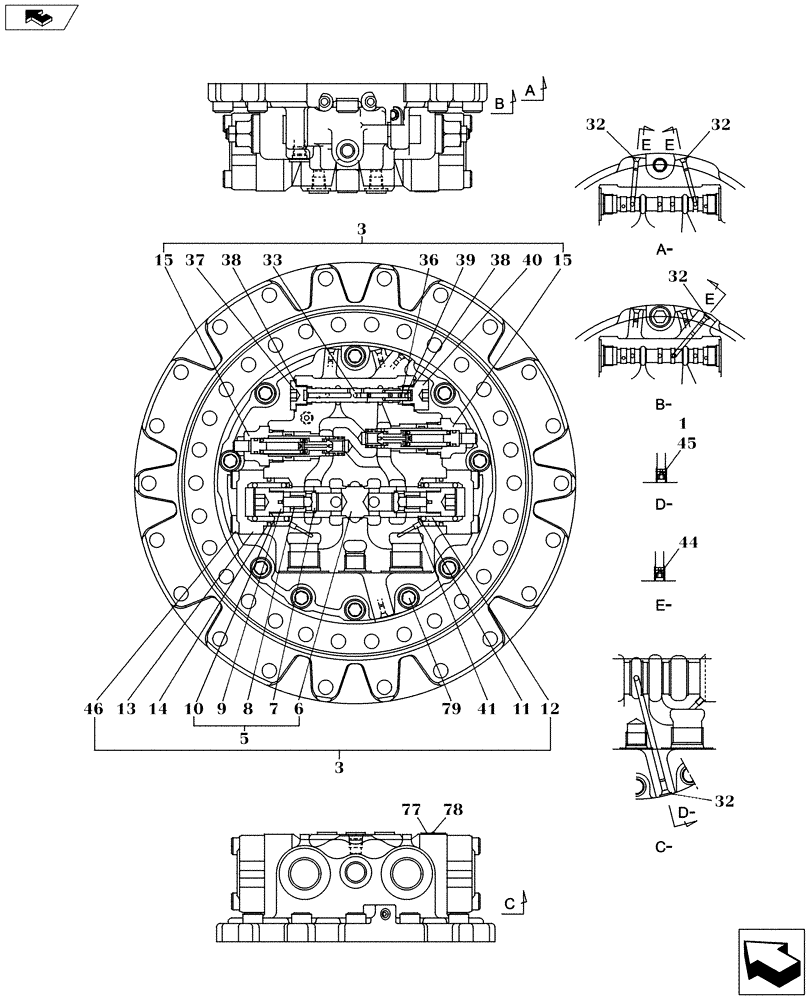

Запчасти Case CX160C (35.353.AD[01]) - TRACTION MOTOR - COMPONENTS (35) - HYDRAULIC SYSTEMS

3

NSS

NOT SOLD SEPARAT

Incl in 1 Fig 35.353.AD (02)

1шт.

5

NSS

NOT SOLD SEPARAT

Incl in 1 Fig 35.353.AD (02)

1шт.

6

NSS

NOT SOLD SEPARAT

Incl in 1 Fig 35.353.AD (02)

1шт.

7

NSS

NOT SOLD SEPARAT

Incl in 1 Fig 35.353.AD (02)

2шт.

8

NSS

NOT SOLD SEPARAT

Incl in 1 Fig 35.353.AD (02)

2шт.

9

NSS

NOT SOLD SEPARAT

Incl in 1 Fig 35.353.AD (02)

2шт.

10

154495A1

O-RING

2шт.

11

156110A1

SPRING SEAT

2шт.

12

LG006200

SPRING

2шт.

13

LR019520

BLOCK

2шт.

14

154589A1

O-RING

2шт.

15

160565A1

VALVE

2шт.

16

NSS

NOT SOLD SEPARAT

Incl in 1 Fig 35.353.AD (02)

2шт.

32

NSS

NOT SOLD SEPARAT

Incl in 1 Fig 35.353.AD (02)

8шт.

33

NSS

NOT SOLD SEPARAT

Incl in 1 Fig 35.353.AD (02)

1шт.

36

LG00343

COMPRESSION SPRING

1шт.

37

LK00329

PLUG

1шт.

38

154487A1

O-RING

2шт.

39

LS00127

GUIDE

1шт.

40

LK00306

PLUG

1шт.

41

NSS

NOT SOLD SEPARAT

Incl in 1 Fig 35.353.AD (02)

2шт.

44

156872A1

ORIFICE

3шт.

45

164485A1

ORIFICE

1шт.

46

861-12040

HEX SOC SCREW,M12 x 40mm, Cl 12.9

8шт.

77

NSS

NOT SOLD SEPARAT

Incl in 1 Fig 35.353.AD (02)

1шт.

78

NSS

NOT SOLD SEPARAT

Incl in 1 Fig 35.353.AD (02)

2шт.

79

NSS

NOT SOLD SEPARAT

Incl in 1 Fig 35.353.AD (02)

2шт.

122

LZ011370

KIT

1шт.

125

LZ008660

REPAIR KIT

1шт.
