(35.352.AL) - SWING MOTOR INSTALL

Запчасти Case CX160C (35.352.AL) - SWING MOTOR INSTALL (35) - HYDRAULIC SYSTEMS

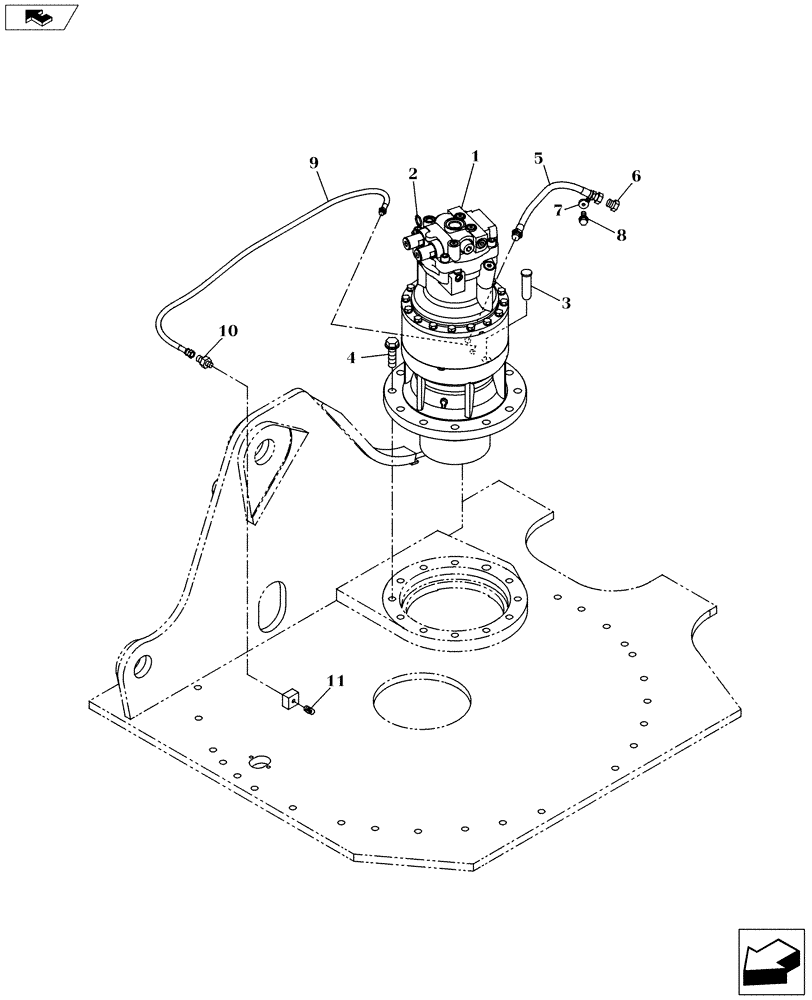

Схема запчастей Case CX160C - (35.352.AL) - SWING MOTOR INSTALL (35) - HYDRAULIC SYSTEMS
8
7
9
6
5
3
4
10
2
11
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KLC10020

MOTO-REDUCTION GEAR

Assembly, Incl Swing Motor LJ014660 & Reduction Gear LN001970

1шт.

1

KLC10020R

REMAN-MOTO REDUCTION

CX160C CRAWLER EXCAVATOR - TIER 4 (NA), Assembly (4/12-)

1шт.

1

KLC10020C

CORE-MOTO-REDUCTION UNIT

Return Number

1шт.

2

KRC10030

DIPSTICK

1шт.

3

158955A1

HEADED PIN

1шт.

4

166354A1

BOLT,Sems, M20 x 75mm

11шт.

5

KRJ16100

HYDRAULIC HOSE,12.70 mm ID x 470.00 mm

1шт.

6

KHP0578

PLUG

1шт.

7

KHR2584

CLAMP

1шт.

8

KHJ1215

BOLT,Spcl

1шт.

9

KHJ16120

HOSE,6.30 mm ID x 1250.00 mm

1шт.

10

KRJ4050

ADAPTER

1шт.

11

153912A1

LUBE NIPPLE,90 Degree, 1/8"-27 NPT x 21.5mm lg

1шт.
