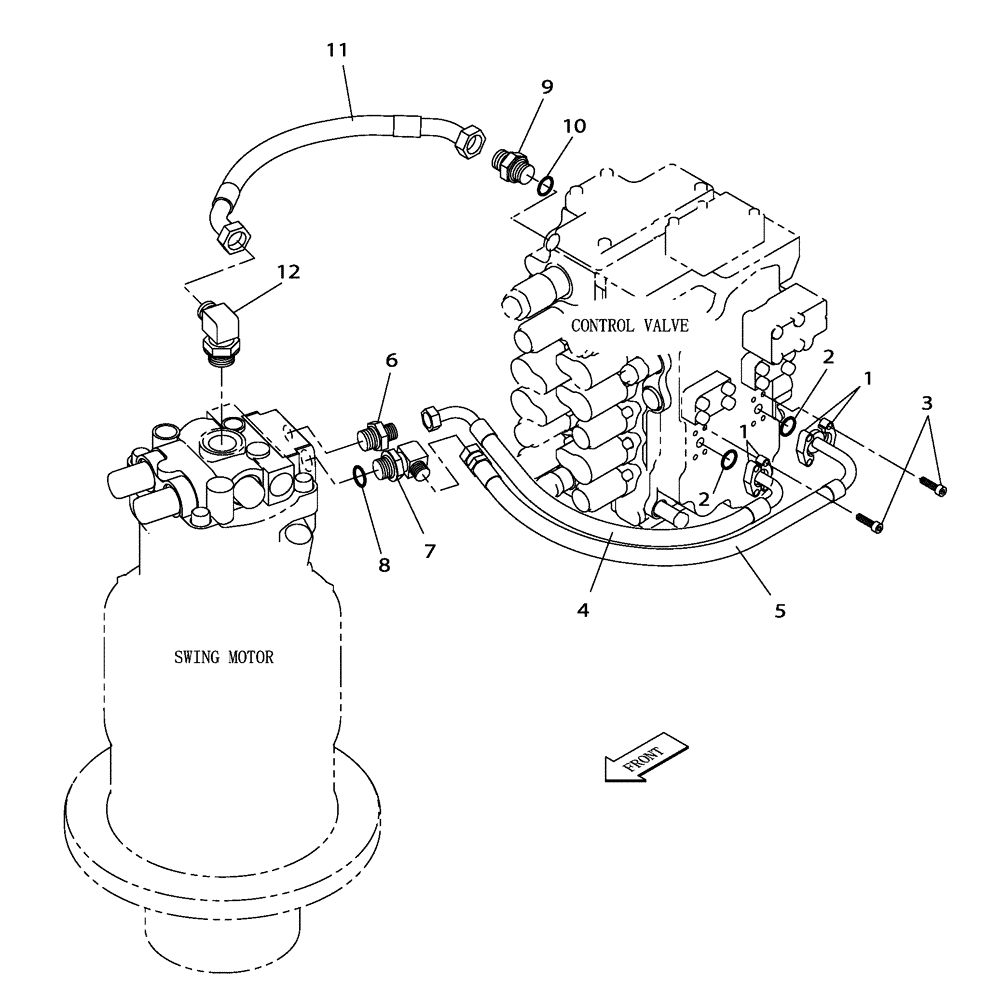

Запчасти Case CX160C (35.352.AI) - SWING LINE (35) - HYDRAULIC SYSTEMS

1

161080A1

FLANGE

4шт.

2

161096A1

O-RING

2шт.

3

862-8030

HEX SOC SCREW,M8 x 30mm, Cl 12.9

8шт.

4

KLJ10630

HOSE ASSY.,12.70 mm ID x 570.00 mm

1шт.

5

KLJ10640

HOSE ASSY.,12.70 mm ID x 670.00 mm

670 mm

1шт.

6

168988A1

ADAPTER

1шт.

7

157936A1

ELBOW

Incl 8

1шт.

8

154503A1

O-RING

1шт.

9

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Incl 10

1шт.

10

154503A1

O-RING

1шт.

11

KLJ11180

HOSE ASSY.,19.00 mm ID x 490.00 mm

1шт.

12

169174A1

ELBOW

1шт.
