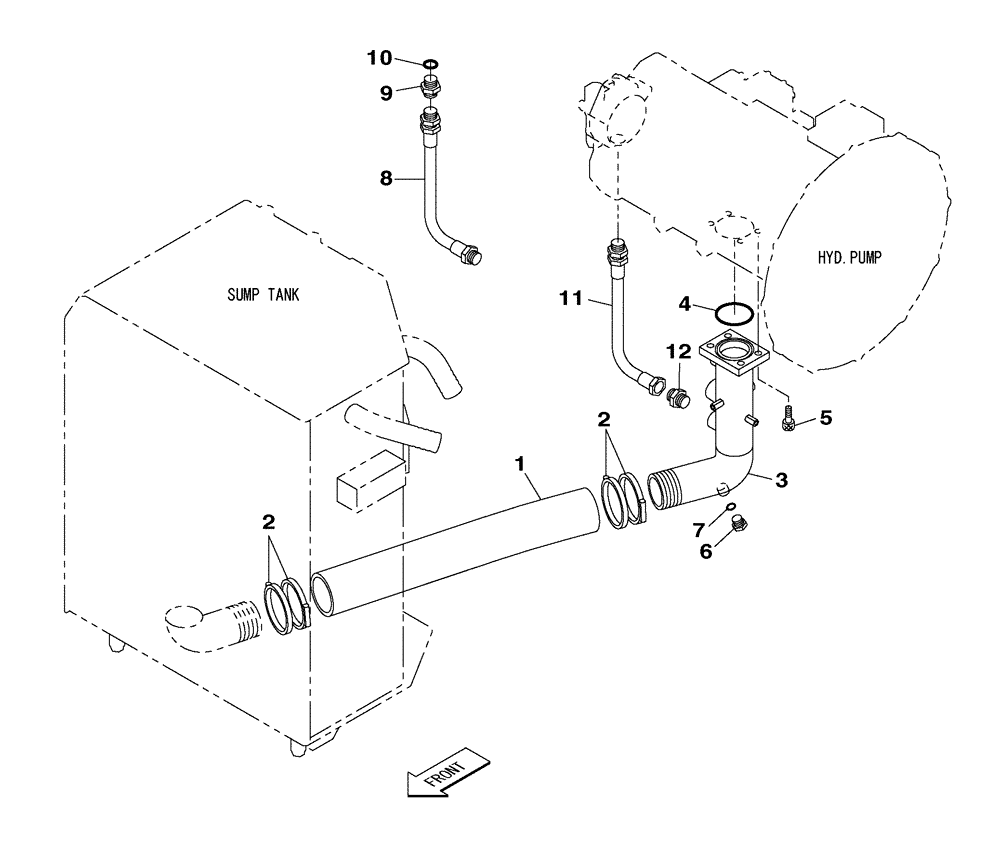

Запчасти Case CX160C (35.310.81) - HYD. LINE - SUCTION LINE (35) - HYDRAULIC SYSTEMS
10
1
7
9
12
4
6
8
2
3
11
5
2
№
Артикул
Название
Примечание
Количество
1
KHJ2418
HOSE
1шт.
2
150893A1
CLAMP
4шт.
3
KNJ13881
MANIFOLD
1шт.
4
154681A1
O-RING
1шт.
5
862-12030
HEX SOC SCREW,M12 x 30mm, Cl 12.9
4шт.
6
NSS
NOT SOLD SEPARAT
No Longer Included In BOM, Remove From Art
1шт.
7
NSS
NOT SOLD SEPARAT
No Longer Included In BOM, Remove From Art
1шт.
8
NSS
NOT SOLD SEPARAT
No Longer Included In BOM, Remove From Art
1шт.
9
NSS
NOT SOLD SEPARAT
No Longer Included In BOM, Remove From Art
1шт.
10
NSS
NOT SOLD SEPARAT
No Longer Included In BOM, Remove From Art
1шт.
11
KNJ16440
HYDRAULIC HOSE,640.00 mm
1шт.
12
NSS
NOT SOLD SEPARAT
No Longer Included In BOM, Remove From Art
1шт.
Выбрано товаров: 12
