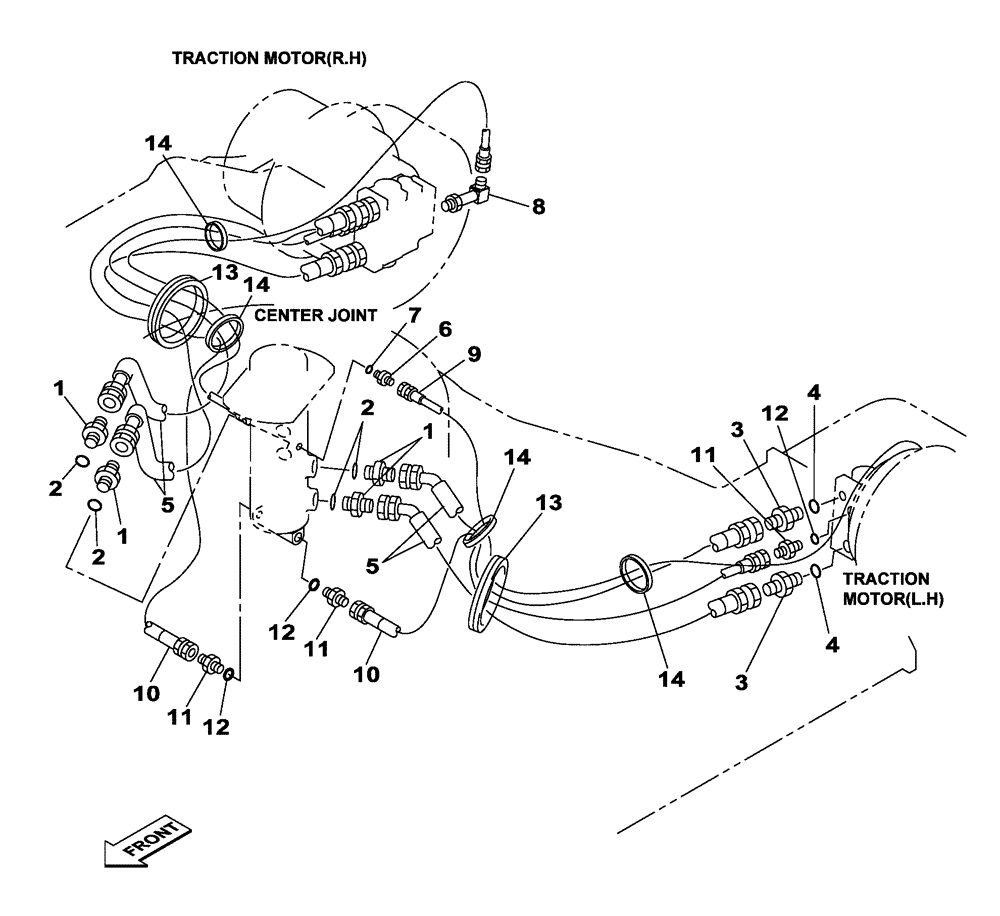

Запчасти Case CX160C (35.310.80) - HYD. LINE - UNDERCARRIAGE (35) - HYDRAULIC SYSTEMS

1

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Incl. 2

4шт.

2

154503A1

O-RING

1шт.

3

169040A1

ADAPTER

Incl. 4

4шт.

4

154523A1

O-RING

1шт.

5

KLA10210

HYDRAULIC HOSE,19.00 mm ID x 1800.00 mm

4шт.

6

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 7

2шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

NBR70K6 10.80IDX240

1шт.

8

KHJ1178

ELBOW

2шт.

9

KAJ3096

HYDRAULIC HOSE

2350 mm

2шт.

10

KHJ1144

HYDRAULIC HOSE,12.70 mm ID x 1800.00 mm

2шт.

11

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 12

4шт.

12

154487A1

O-RING

1шт.

13

150876A1

RUBBER BLOCK

440 mm

2шт.

14

150071A1

MOUNTING CLIP

380 mm

4шт.
