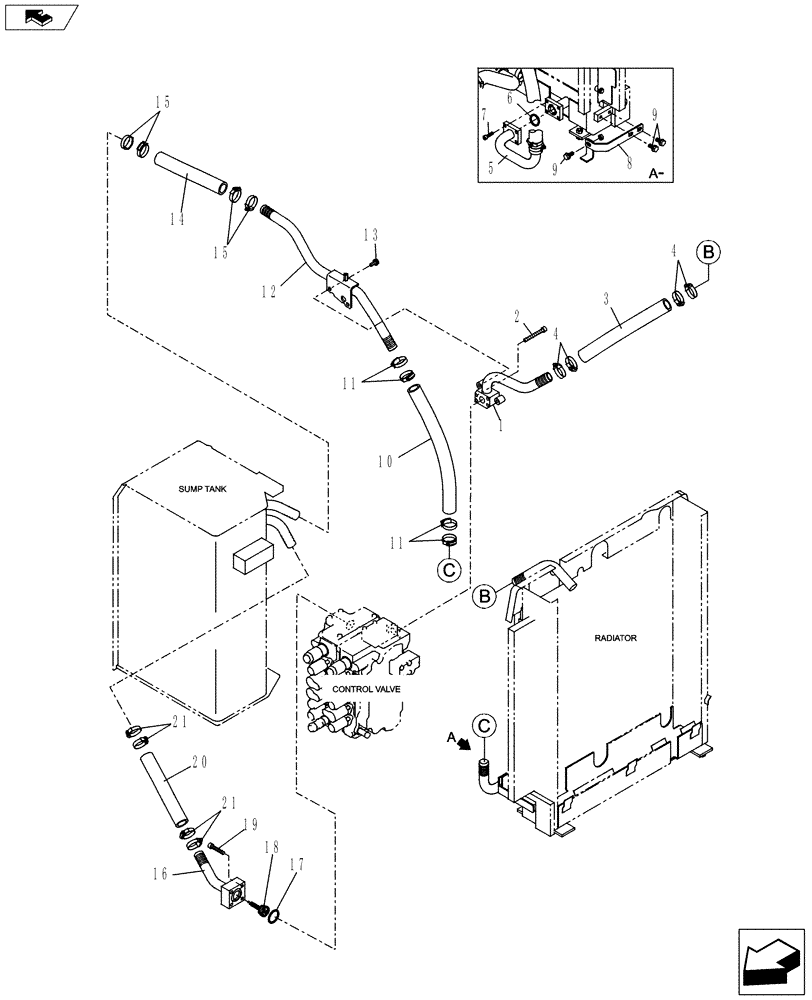

Запчасти Case CX160C (35.300.BC) - RETURN AND OIL COOLER LINE (35) - HYDRAULIC SYSTEMS

1

KNJ18110

HYD TUBE

1шт.

2

862-10060

HEX SOC SCREW,M10 x 60mm, Cl 12.9

4шт.

3

KMJ2150

HOSE

1шт.

4

KHJ26080

HOSE CLAMP

4шт.

5

KNJ12100

HYD TUBE,27.6 mm ID x 34 mm OD

1шт.

6

154549A1

O-RING

1шт.

7

862-8030

HEX SOC SCREW,M8 x 30mm, Cl 12.9

4шт.

8

KNJ12310

BRACKET

1шт.

9

166052A1

BOLT

3шт.

10

150820A1

HYDRAULIC HOSE,34.00 mm ID x 500.00 mm

1шт.

11

KHJ26080

HOSE CLAMP

4шт.

12

KNJ18180

HYD TUBE

1шт.

13

166052A1

BOLT

2шт.

14

KHJ13450

HYDRAULIC HOSE,34.00 mm ID x 300.00 mm

1шт.

15

KHJ26080

HOSE CLAMP

4шт.

16

KNJ12120

HYD TUBE,27.6 mm ID x 34 mm OD

1шт.

17

154609A1

O-RING

1шт.

18

KHJ16030

CHECK VALVE

1шт.

19

862-10055

HEX SOC SCREW,M10 x 55mm, Cl 12.9

4шт.

20

KHJ13450

HYDRAULIC HOSE,34.00 mm ID x 300.00 mm

1шт.

21

150885A1

COLLAR

4шт.
