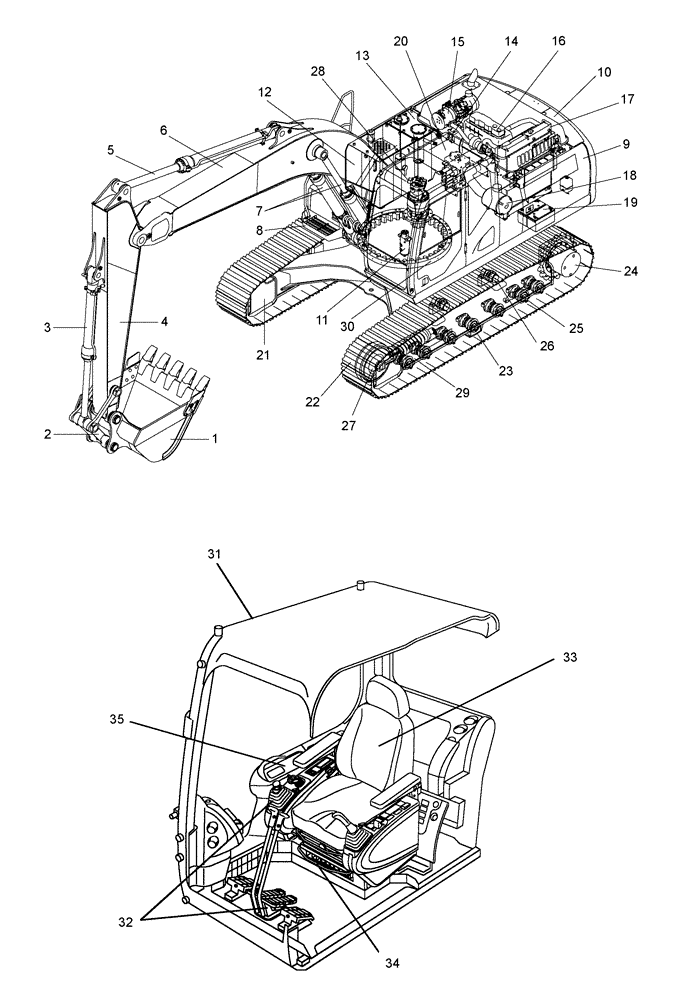

Запчасти Case CX160C (00.000.00) - PICTORIAL INDEX - MAIN SECTIONS (00) - GENERAL & PICTORIAL INDEX

1

BUCKET - See Figure(s) 84.100.AP

1шт.

2

BUCKET CONTROL - See Figure(s) 84.100.AP

1шт.

3

BUCKET CYLINDER - See Figure(s) 35.738.AA

1шт.

4

DIPPER - See Figure(s) 84.912.AA (01 - 02)

1шт.

5

DIPPER CYLINDER - See Figures 35.737.AA (01 - 02)

1шт.

6

MONOBLOCK BOOM - See Figure(s) 84.910.AA (01 - 02)

1шт.

7

BOOM CYLINDER - See Figure(s) 35.736.AA (01 - 04)

1шт.

8

UPPERSTRUCTURE CHASSIS - See Figure(s) 39.101.AC

1шт.

9

COWLING - See Figure(s) 90.100.AD (01 - 04)

1шт.

10

COUNTERWEIGHT - See Figure(s) 39.140.AM

1шт.

11

SWING JOINT - See Figure(s) 35.354.AA

1шт.

12

FUEL TANK, FUEL SYSTEM - See Figure(s) 10.216.AI and BA, 10.218.AD

1шт.

13

HYDRAULIC RESERVOIR, HYDRAULIC SYSTEM - See Figure(s) 35.300.AQ and BC

1шт.

14

HYDRAULIC PUMP - See Figure(s) 35.106.AD

1шт.

15

EXHAUST ENGINE - See Figure(s) 10.254.AI

1шт.

16

ENGINE - See Figure(s) 10.001.AD

1шт.

17

RADIATOR - See Figure(s) 10.400.AD

1шт.

18

AIR FILTRATION - See Figure(s) 10.202.BE and BF

1шт.

19

BATTERIES, ELECTRICAL SYSTEM - See Figure(s) 55.302.AG, 55.510.AB

1шт.

20

CONTROL VALVE - See Figure(s) 35.359.AB (01 - 10)

1шт.

21

UNDERCARRIAGE - See Figure(s) 39.100.AB

1шт.

22

TRACK FOOT STEP - See Figure(s) 48.100.AD (01 - 02)

1шт.

23

GUIDE, CHAIN - See Figure(s) 48.130.AO (02 - 03)

1шт.

24

TRAVEL MOTOR AND REDUCTIONGEAR - See Figure(s) 35.353.AD (01 - 05)

1шт.

25

ROLLER LOWER - See Figure(s) 48.138.AB (02)

1шт.

26

ROLLER UPPER - See Figure(s) 48.138.AB (01)

1шт.

27

GUIDE PULLEY - See Figure(s) 48.130.AO (01)

1шт.

28

SWING MOTOR-DRIVE REDUCTION GEAR - See Figure(s) 35.352.AL (01 - 02)

1шт.

29

TENSION DAMPER - See Figure(s) 48.110.AA

1шт.

30

SWING COMPONENTS, LUBRICATION CIRCUIT - See Figure(s) 39.103.99, 71.460.AF

1шт.

31

OPERATORS COMPARTMENT, CAB - See Figure(s) 90.150.AB

1шт.

32

OPERATORS COMPARTMENT, LEVER, CONTROL - See Figure(s) 90.110.AV (01 - 03)

1шт.

33

OPERATORS COMPARTMENT - SEAT AND CONTROL ARM MOUNTING - See Figure(s) 90.120.BB, 90.124.AE

1шт.

34

CAB AIR CONDITIONING - See Figure(s) 50.200.AA (01 - 04)

1шт.

35

SIDE INSTRUMENT PANEL - See Figure(s) 90.110.AV (01 - 02)

1шт.
