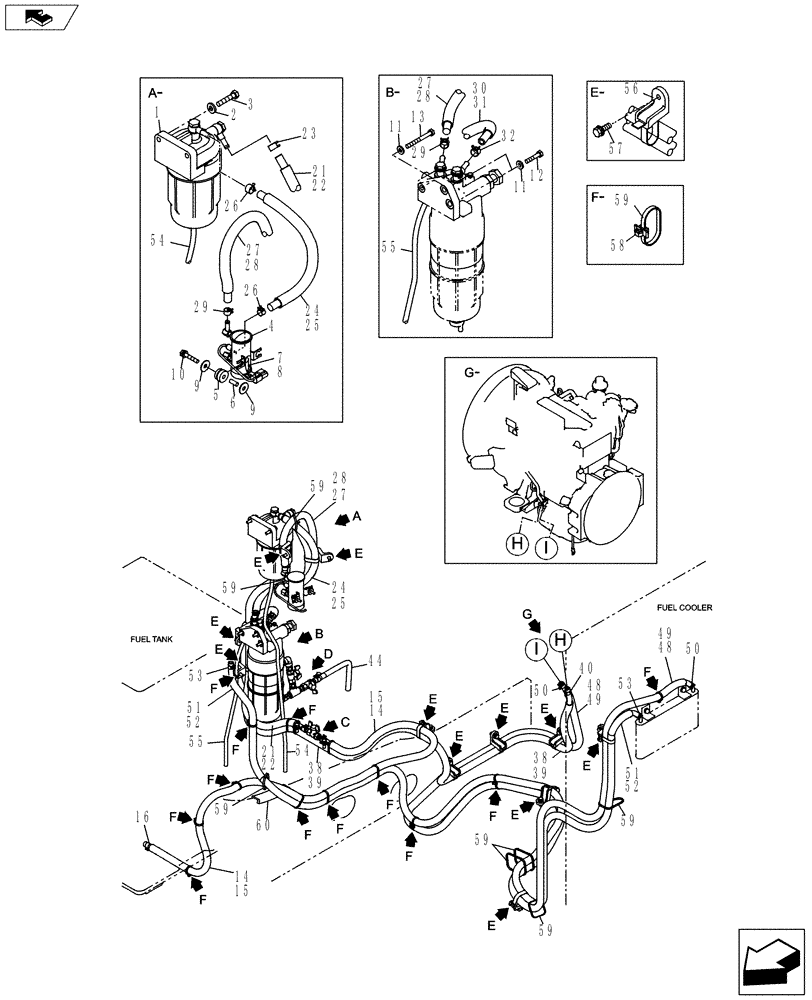

Запчасти Case CX160C (10.216.BA[01]) - FUEL LINE Invalid section

1

KHH12020

FILTER ASSY

1шт.

2

153081A1

WASHER

2шт.

3

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

2шт.

4

KHH11880

FEED PUMP

Incl 5 - 8

1шт.

5

KHH10470

GROMMET

2шт.

6

KHH10480

COLLAR

2шт.

7

KHH11890

FILTER SCREEN

1шт.

8

KHH11900

GASKET

1шт.

9

150529A1

WASHER

4шт.

10

162057A1

BOLT,Spcl, M6 x 35mm

2шт.

11

153081A1

WASHER

3шт.

12

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

2шт.

13

102R008Y075R

BOLT

1шт.

14

KHH10800

FLEXIBLE HOSE

1шт.

15

158065A1

PLASTIC-RUBBER TUBE

1шт.

16

KHH0405

MOUNTING CLIP

2шт.

21

KHH13910

FLEXIBLE HOSE

1шт.

22

NSS

NOT SOLD SEPARAT

Sleeve, Incl in KG0LH092

1шт.

23

KHH0405

MOUNTING CLIP

2шт.

24

KHH13670

FUEL HOSE

1шт.

25

KHR21050

PLASTIC-RUBBER TUBE

1шт.

26

KHH0405

MOUNTING CLIP

2шт.

27

KHH12340

FUEL HOSE,1000.00 mm

1шт.

28

KHR21050

PLASTIC-RUBBER TUBE

1шт.

29

KHH0405

MOUNTING CLIP

2шт.

30

KHH13580

FUEL HOSE

1шт.

31

KHR21050

PLASTIC-RUBBER TUBE

1шт.

32

KHH0405

MOUNTING CLIP

2шт.

38

KHH14850

HOSE

1шт.

39

KHR11730

FLEXIBLE SHEATH

1шт.

40

KHH0405

MOUNTING CLIP

2шт.

44

KHH14170

FUEL HOSE

1шт.

48

KHH14840

HOSE

1шт.

49

KHR17670

PLASTIC-RUBBER TUBE

1шт.

50

KHH0405

MOUNTING CLIP

2шт.

51

KHH14750

FLEXIBLE HOSE

1шт.

52

NSS

NOT SOLD SEPARAT

Sleeve, Incl in KG0LH092

1шт.

53

KHH0405

MOUNTING CLIP

2шт.

54

KHH12880

PLASTIC-RUBBER TUBE

1шт.

55

KHH12880

PLASTIC-RUBBER TUBE

1шт.

56

KHR2581

CLAMP

11шт.

57

KHJ1215

BOLT,Spcl

11шт.

58

KHR10220

MOUNTING CLIP

12шт.

59

150496A1

MOUNTING CLIP

21шт.

60

164688A1

GASKET

1шт.
