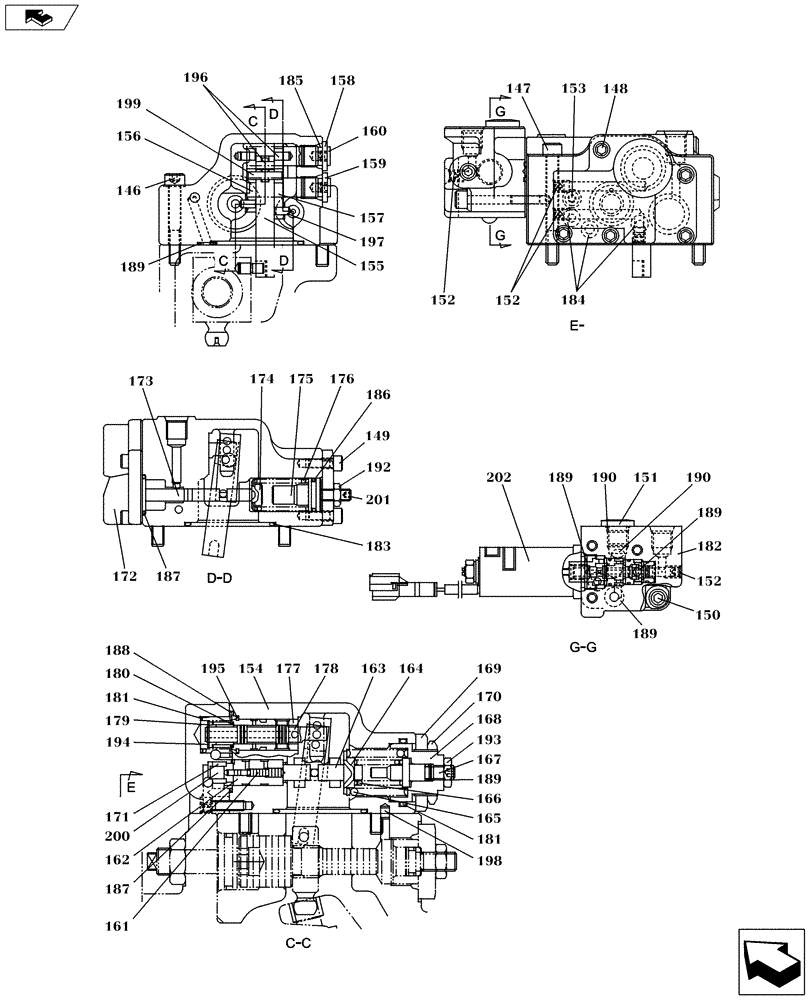

Запчасти Case CX160C (35.106.AD[09]) - HYDRAULIC PUMP - SECOND OPTION (35) - HYDRAULIC SYSTEMS
![Схема запчастей Case CX160C - (35.106.AD[09]) - HYDRAULIC PUMP - SECOND OPTION (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/casece/3702879.png)
№
Артикул
Название
Примечание
Количество
146
108R008Z050N
BOLT
2шт.
147
861-8070
HEX SOC SCREW,M8 x 70mm, Cl 12.9
2шт.
148
862-6020
HEX SOC SCREW,M6 x 20mm, Cl 12.9
5шт.
149
861-6016
HEX SOC SCREW,M6 x 16mm, Cl 12.9
4шт.
150
861-6045
HEX SOC SCREW,M6 x 45mm, Cl 12.9
4шт.
151
LK00015
PLUG
1шт.
152
LK00003
PLUG
5шт.
153
LK006340
PLUG
3шт.
154
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
155
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
156
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
157
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
158
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
159
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
160
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
2шт.
161
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
162
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
163
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
164
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
165
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
166
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
167
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
168
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
169
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
170
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
171
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
172
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
173
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
174
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
175
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
176
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
177
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
178
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
179
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
180
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
181
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
182
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
183
LE015270
O-RING
1шт.
184
LE013470
O-RING
7шт.
185
LE014730
O-RING
2шт.
186
154489A1
O-RING
1шт.
187
LE00608
O-RING
2шт.
188
LE013380
O-RING
1шт.
189
LE013540
O-RING
6шт.
190
LE013410
O-RING
2шт.
192
LA00065
JAM NUT
1шт.
193
LA010640
JAM NUT
1шт.
194
800-1110
SNAP RING,M10, Ext
1шт.
195
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
196
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
3шт.
197
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
2шт.
198
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
199
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
200
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
201
LA00759
BOLT,Hex Skt Hd
1шт.
202
LJ00684
SOLENOID VALVE
1шт.
Выбрано товаров: 56
