Запчасти Case CX160C (35.106.AD[08]) - OPTION (35) - HYDRAULIC SYSTEMS

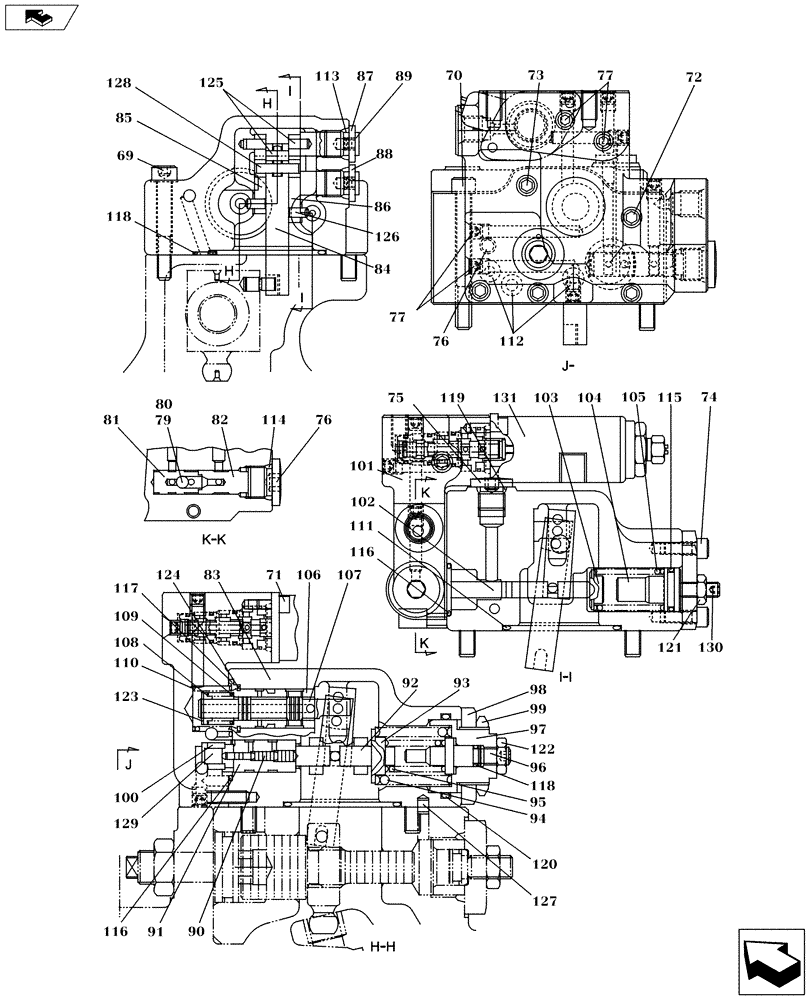

![Схема запчастей Case CX160C - (35.106.AD[08]) - OPTION (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/casece/3754602.png)
№
Артикул
Название
Примечание
Количество
69
108R008Z050N
BOLT
2шт.
70
861-8070
HEX SOC SCREW,M8 x 70mm, Cl 12.9
2шт.
71
LA010920
BOLT,Hex Skt Hd
2шт.
72
861-6030
HEX SOC SCREW,M6 x 30mm, Cl 12.9
1шт.
73
108R006Y020R
BOLT
4шт.
74
861-6016
HEX SOC SCREW,M6 x 16mm, Cl 12.9
4шт.
75
LK00015
PLUG
1шт.
76
LK00008
PLUG
1шт.
77
LK00003
PLUG
10шт.
79
LJ014480
VALVE SECTION
1шт.
80
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
81
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
82
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
83
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
84
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
85
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
86
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
87
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
88
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
89
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
2шт.
90
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
91
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
92
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
93
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
94
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
95
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
96
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
97
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
98
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
99
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
100
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
101
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
102
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
103
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
104
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
105
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
106
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
107
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
108
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
109
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
110
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
111
LE015270
O-RING
1шт.
112
LE013470
O-RING
7шт.
113
LE014730
O-RING
2шт.
114
LE013490
O-RING
1шт.
115
154489A1
O-RING
1шт.
116
LE00608
O-RING
2шт.
117
LE013380
O-RING
1шт.
118
LE013540
O-RING
3шт.
119
LE013410
O-RING
1шт.
120
LE015280
O-RING
1шт.
121
LA00065
JAM NUT
1шт.
122
LA010640
JAM NUT
1шт.
123
800-1110
SNAP RING,M10, Ext
1шт.
124
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
125
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
3шт.
126
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
2шт.
127
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
128
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
129
NSS
NOT SOLD SEPARAT
Incl in 1 of Figure 35.106.AD (07)
1шт.
130
LA00759
BOLT,Hex Skt Hd
1шт.
131
LJ016060
REGULATOR
1шт.
Выбрано товаров: 62
