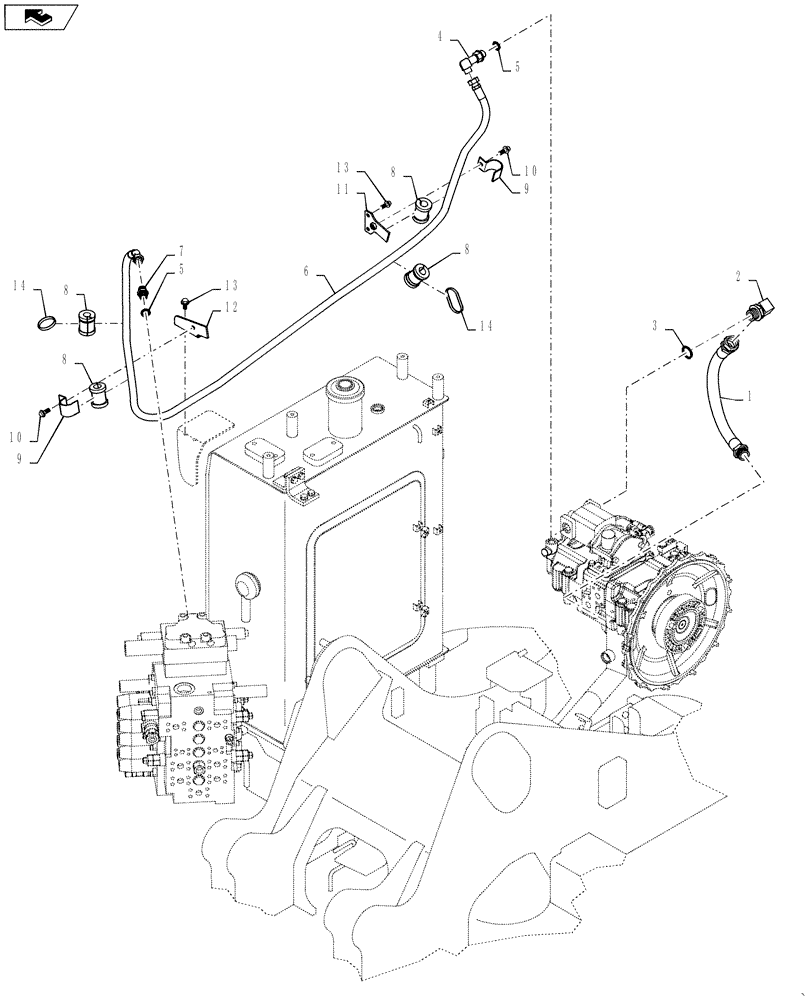

Запчасти Case CX145C SR (35.106.AP[02]) - PRESSURE LINE - 2ND SB (OFFSET) (35) - HYDRAULIC SYSTEMS

1

KMJ14840

HYDRAULIC HOSE

L 500MM

1шт.

2

157581A1

ELBOW,90 Degree, 1" O-Ring x 1"

90 deg, Incl 3

1шт.

3

154523A1

O-RING

1шт.

4

KHJ1044

ELBOW

Incl 5

1шт.

5

154487A1

O-RING

1шт.

6

KMJ17280

HYDRAULIC HOSE

Hose, Hyd, L2200

1шт.

7

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Hose, Incl 5

1шт.

8

KHJ2021

HOSE CLAMP

4шт.

9

KHJ2025

CLAMP

2шт.

10

166350A1

BOLT

Bolt SEMS

2шт.

11

KMJ14870

BRACKET

1шт.

12

KMJ16540

BRACKET

1шт.

13

166350A1

BOLT

Bolt SEMS

4шт.

14

150071A1

MOUNTING CLIP

Cable Tie

6шт.
