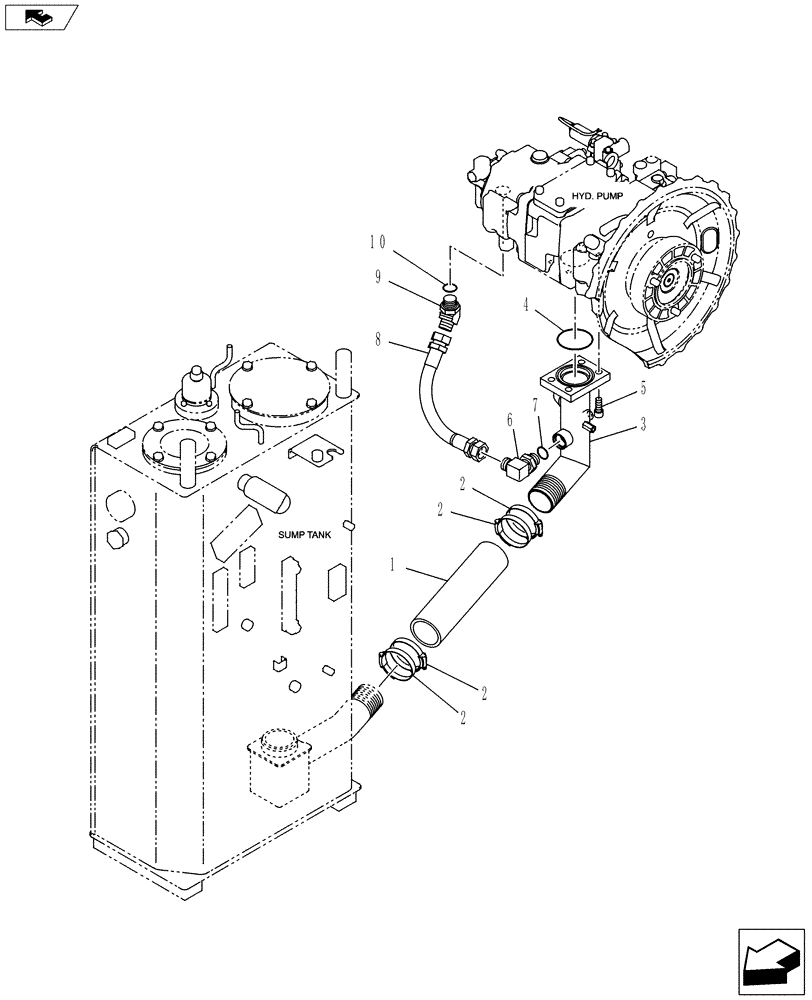

Запчасти Case CX145C SR (35.105.AC) - SUCTION LINE (35) - HYDRAULIC SYSTEMS

1

LN002260

REDUCER

Incl 2 - 34

1шт.

1

LN002260R

REMAN-REDUCTION UNIT

CX145C SR CRAWLER EXCAVATOR - TIER 4 (NA) (8/12-)

1шт.

1

LN002260C

CORE-REDUCTION UNIT

Return Number

1шт.

2

LN002270

HOUSING

Incl 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

Carrier, Incl in 2

1шт.

4

NSS

NOT SOLD SEPARAT

Gear, Incl in 2

3шт.

5

NSS

NOT SOLD SEPARAT

Pin, Incl in 2

3шт.

6

NSS

NOT SOLD SEPARAT

Washer, Incl in 2

6шт.

7

NSS

NOT SOLD SEPARAT

Pin, Incl in 2

3шт.

8

NSS

NOT SOLD SEPARAT

Bearing, Incl in 2

3шт.

9

LN002280

HOUSING

Incl 10 - 15

1шт.

10

NSS

NOT SOLD SEPARAT

Carrier, Incl in 9

1шт.

11

NSS

NOT SOLD SEPARAT

Gear, Incl in 9

3шт.

12

NSS

NOT SOLD SEPARAT

Pin, Incl in 9

3шт.

13

NSS

NOT SOLD SEPARAT

Washer, Incl in 9

6шт.

14

NSS

NOT SOLD SEPARAT

Pin, Incl in 9

3шт.

15

NSS

NOT SOLD SEPARAT

Bearing, Incl in 9

3шт.

16

LE016880

SEAL

Incl 17

1шт.

17

NSS

NOT SOLD SEPARAT

Seal, Incl in 16

2шт.

18

LH005370

HUB

1шт.

19

LR016850

SPINDLE

1шт.

20

LC003090

SUN GEAR

1шт.

21

LC003100

SUN GEAR

1шт.

22

LR016860

RETAINING PLATE

1шт.

23

LW005540

COVER

1шт.

24

LB012750

COUPLING RING

1шт.

25

LA011780

LOCK WASHER

2шт.

26

LH005380

ADJUSTING PLATE

1шт.

27

LB012760

BALL BEARING

2шт.

28

165237A1

PLUG

3шт.

29

154487A1

O-RING

3шт.

30

LBQ5261

O-RING

1шт.

31

154451A1

O-RING

2шт.

32

161820A1

COTTER PIN

2шт.

33

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

12шт.

34

370A0220Z

SNAP RING

1шт.

117

LZ009510

SEAL KIT

1шт.

1

KMJ1814

HOSE

1шт.

2

150893A1

CLAMP

4шт.

3

KMJ14850

PIPE

1шт.

4

154681A1

O-RING

1шт.

5

862-12030

HEX SOC SCREW,M12 x 30mm, Cl 12.9

4шт.

6

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

1шт.

7

154503A1

O-RING

1шт.

8

163497A1

HYDRAULIC HOSE,19.00 mm ID x 330.00 mm

1шт.

9

157586A1

ELBOW

1шт.

10

154503A1

O-RING

1шт.
