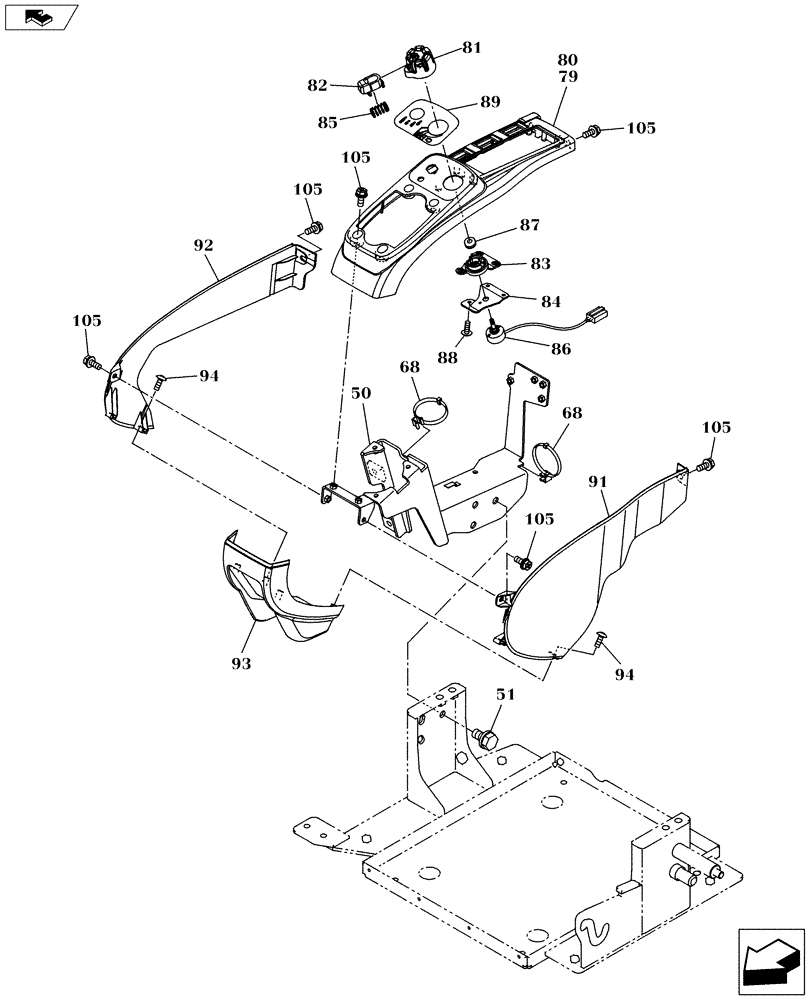

Запчасти Case CX145C SR (90.160.BY[01]) - CONSOLE, , SIDE PANEL, RIGHT (90) - PLATFORM, CAB, BODYWORK AND DECALS
![Схема запчастей Case CX145C SR - (90.160.BY[01]) - CONSOLE, , SIDE PANEL, RIGHT (90) - PLATFORM, CAB, BODYWORK AND DECALS](https://partsell.ru/storage/images/casece/3694084.png)
94
86
79
93
91
105
85
105
105
87
50
82
68
81
105
94
83
home
80
105
51
105
84
88
89
68
92
50
KHN32220
FRAME
1шт.
51
166351A1
BOLT,Sems, M10 x 20mm
3шт.
68
KHN17050
CLIP
4шт.
79
KHN32440
COVER
Incl 80 - 89
1шт.
80
KHN32450
COVER
1шт.
81
KHN15100
BUTTON
1шт.
82
KHN15110
BUTTON
1шт.
83
KHN15120
ELEC SUPPORT PLATE
1шт.
84
KHN15130
BRACKET
1шт.
85
KHN15140
SPRING
1шт.
86
KHR2751
SWITCH
1шт.
87
KHR2741
PACKING
1шт.
88
KHR2737
SELF-TAP SCREW
3шт.
89
KHN26260
PANEL
1шт.
91
KHN32470
COVER
1шт.
92
KHN32480
COVER
1шт.
93
KHN32490
COVER
1шт.
94
KHR2737
SELF-TAP SCREW
4шт.
105
KHN2132
BOLT,Hex Flg Hd, M6 x 16
16шт.
