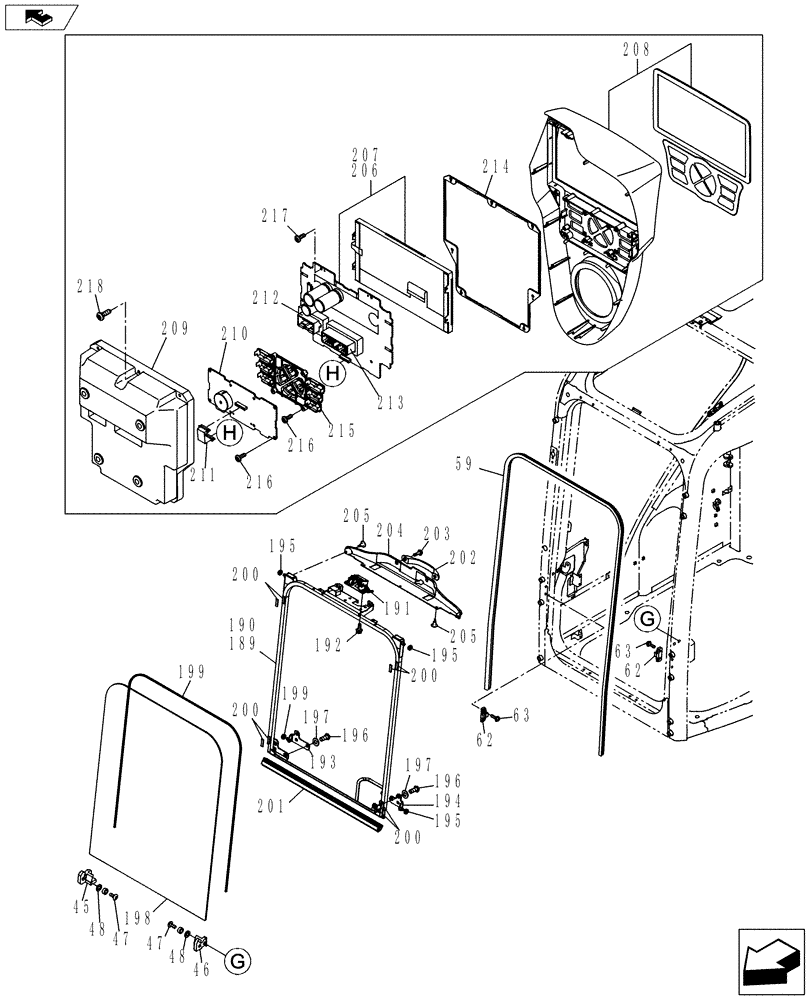

Запчасти Case CX145C SR (90.150.AB[05]) - CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
![Схема запчастей Case CX145C SR - (90.150.AB[05]) - CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS](https://partsell.ru/storage/images/casece/3700241.png)
195
47
194
46
63
195
213
63
1
192
199
62
208
191
home
215
195
1
189
210
48
196
197
202
214
209
201
205
216
48
199
205
216
204
190
200
198
59
200
203
200
200
206
196
207
218
193
62
47
212
45
217
2
197
211
45
KHN30590
STOP
4шт.
46
KHN30600
STOP
4шт.
47
KHN3051
SCREW,Spcl
4шт.
48
KHN30610
WASHER
4шт.
59
KHN30670
STRIP
4шт.
62
KHN30690
SPACER
4шт.
63
KHN3084
SCREW,Spcl
4шт.
189
KHN30360
WINDOW
Incl 190 - 205
3шт.
190
KHN30380
WINDOW FRAME
4шт.
191
KHN30370
LOCK
4шт.
192
KHN30390
BOLT
4шт.
193
KHN30410
PLATE
4шт.
194
KHN30420
PLATE
4шт.
195
KHN30430
ROLLER
4шт.
196
KHN31180
BOLT
4шт.
197
KHN30450
WASHER
4шт.
198
KHN30460
GLASS
4шт.
199
KHN30470
SEAL
4шт.
200
KHN30480
TRIM
4шт.
201
KHN30490
JOINT
4шт.
202
KHN30500
HANDLE
4шт.
203
KHN3084
SCREW,Spcl
4шт.
204
KHN30510
COVER
4шт.
205
KHN30520
PIN
4шт.
206
KHR23593
CONTROL MONITOR
Incl 207 - 218
2шт.
206
KHR23593R
REMAN-INSTR CLUSTER
2шт.
206
KHR23593C
CORE-CLUSTER, INSTR
Return Number
2шт.
207
KHR28002
DISPLAY
3шт.
208
KHR28120
PANEL
3шт.
209
KHR28020
PANEL
3шт.
210
KHR28030
INSTRUMENT PANEL
3шт.
211
KHR28040
ELECTRIC CABLE
3шт.
212
KHR28050
PADDING
3шт.
213
KHR28060
PADDING
3шт.
214
KHR28070
PADDING
3шт.
215
KHR28080
BUTTON
3шт.
216
KHR28090
SCREW
3шт.
217
KHR28100
SCREW
3шт.
218
KHR28110
SCREW
3шт.
