(90.150.AB[03]) - CAB

Запчасти Case CX145C SR (90.150.AB[03]) - CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

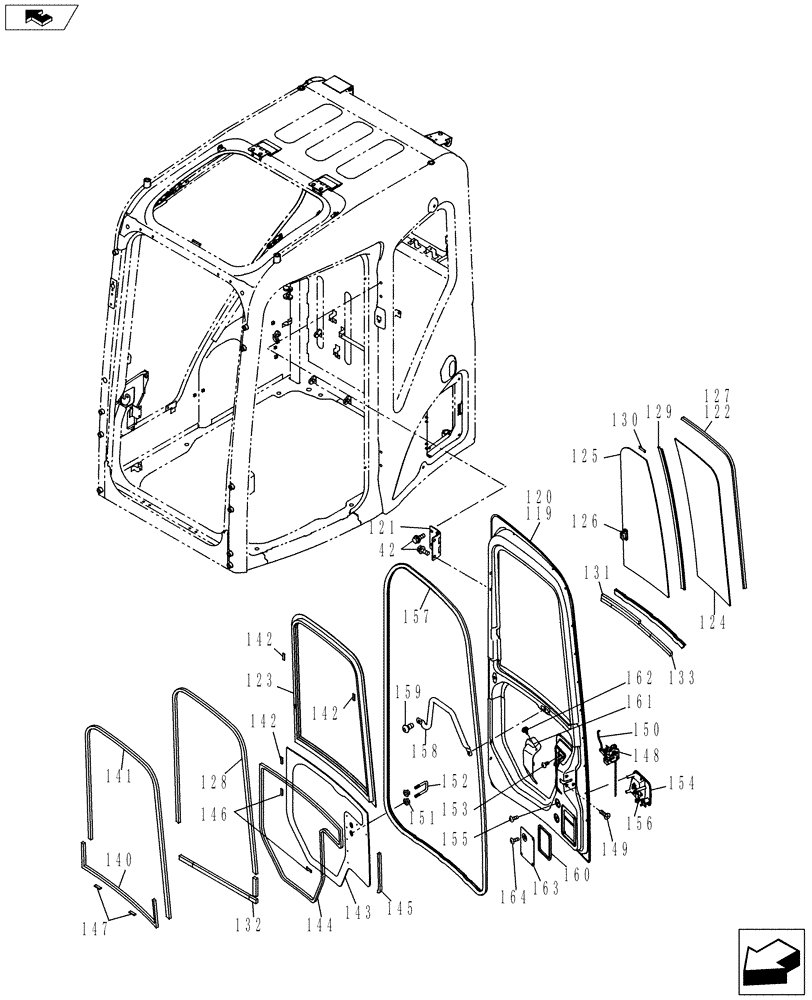

Схема запчастей Case CX145C SR - (90.150.AB[03]) - CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
141
159
157
142
144
120
148
164
122
119
131
130
149
121
125
147
162
126
140
home
160
133
128
150
142
145
142
154
161
129
156
143
123
127
158
132
146
151
152
163
155
153
124
42
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

42

KHN30560

BOLT

4шт.

119

KHN29800

DOOR

Incl 120 - 133, 140 -164

3шт.

120

KHN29830

DOOR

4шт.

121

KHN29840

HINGE

4шт.

122

KHN31650

WINDOW FRAME

Incl 123 - 133

4шт.

123

KHN31660

WINDOW FRAME

5шт.

124

KHN31670

GLASS

5шт.

125

KHN31680

GLASS

5шт.

126

KHN31690

LOCK

5шт.

127

KHN31700

RAIL ASSY.

5шт.

128

KHN31710

RAIL ASSY.

5шт.

129

KHN31720

SEAL

5шт.

130

KHN31730

STOP

5шт.

131

KHN31740

STOP

5шт.

132

KHN31750

STOP

5шт.

133

KHN31760

STOP

5шт.

140

KHN31770

SEAL

4шт.

141

KHN31780

SEAL

4шт.

142

KHN31790

TRIM

4шт.

143

KHN31800

GLASS

4шт.

144

KHN31810

SEAL

4шт.

145

KHN31820

SEAL

4шт.

146

KHN31830

SPACER

4шт.

147

KAN2662

SPACER

4шт.

148

KHN31840

LH DOOR LOCK

Incl 150

4шт.

149

KHN31870

BOLT

4шт.

150

NSS

NOT SOLD SEPARAT

Incl in 148

1шт.

151

KHN3097

SPECIAL NUT

4шт.

152

KHN31910

STRIKER

4шт.

153

KAN2641

SCREW,Spcl

4шт.

154

KHN15570

HANDLE

Outside

4шт.

155

KHN3051

SCREW,Spcl

4шт.

156

KHN15650

RUBBER JOINT

4шт.

157

KHN31950

SEAL

4шт.

158

KHN31960

RAIL ASSY.

4шт.

159

KHN31970

BOLT

4шт.

160

KHN31980

SEAL

4шт.

161

KHN31990

COVER

4шт.

162

KHN30520

PIN

4шт.

163

KHN32000

COVER

4шт.

164

KHN3051

SCREW,Spcl

4шт.

KHN31940

KNOB

Assembly, (Not Shown) Installed Under ref# 161

1шт.

Includes Plastic Knob, Shaft it attaches to, Return Spring, and Plate that Attaches to Door

1шт.
