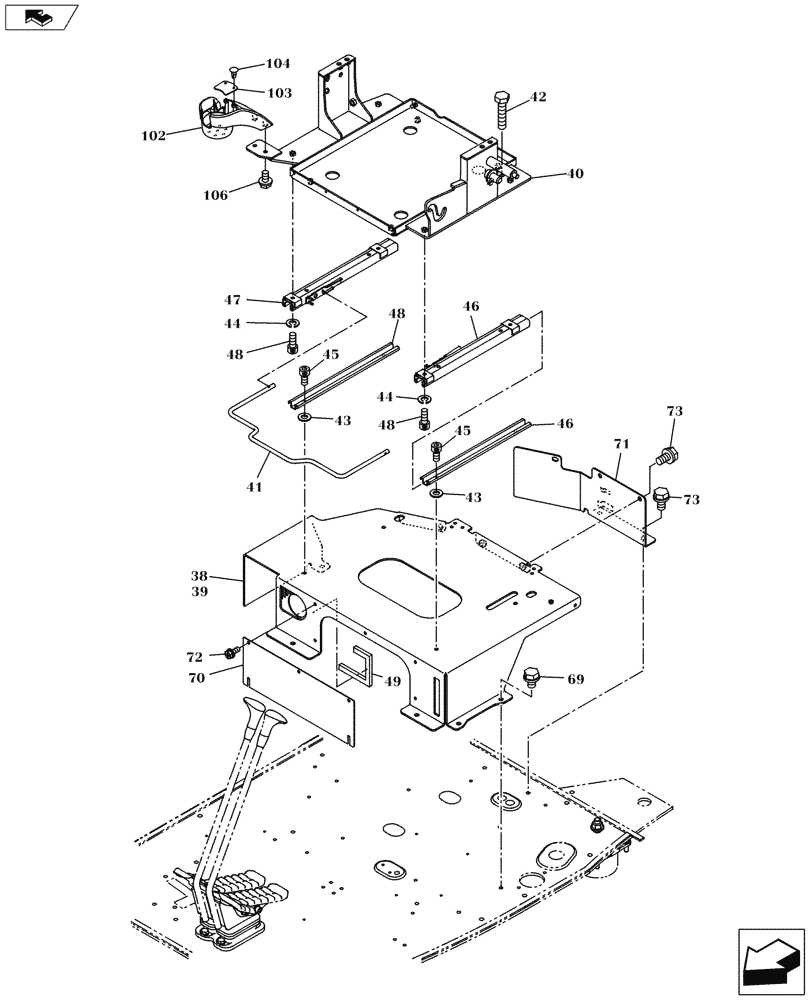

Запчасти Case CX145C SR (90.120.AD[03]) - VAR - 781277 - SEAT, AIR SUSPENSION (ANZ) (90) - PLATFORM, CAB, BODYWORK AND DECALS

38

KHN32150

BRACKET

Incl 39 - 49

1шт.

39

KHN32160

BASE

1шт.

40

KHN32170

BASE

1шт.

41

KHN21960

LEVER

1шт.

42

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

1шт.

43

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

44

183-108VR

SPRING WASHER

4шт.

45

108R008Y016R

BOLT

4шт.

46

KHN13431

SLIDE GUIDE

1шт.

47

KHN13421

SLIDE GUIDE

1шт.

48

108R008Y020R

HEX SOC SCREW

4шт.

49

KHN32850

SEAL

1шт.

69

166346A1

BOLT,Sems, M10

5шт.

70

KHN21910

COVER

1шт.

71

KHN32780

COVER

, Serial Range: -NDS6E1275

1шт.

71

KHN32781

COVER

, Start Serial: NDS6E1276

1шт.

72

KHN2132

BOLT,Hex Flg Hd, M6 x 16

5шт.

73

166351A1

BOLT,Sems, M10 x 20mm

5шт.

102

KHN23220

HOLDER

1шт.

103

KHN14760

PLATE

1шт.

104

KHN2470

CLIP

2шт.

106

KHN13540

BOLT,Spcl

2шт.
