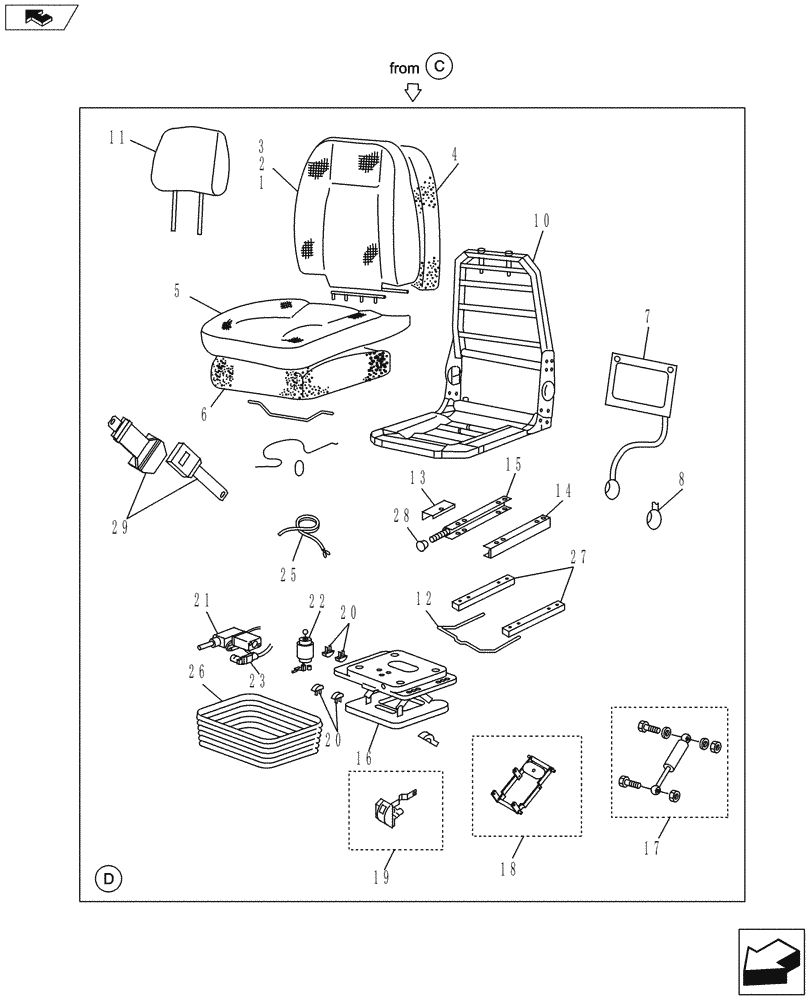

Запчасти Case CX145C SR (90.120.AD[02]) - SEAT, AIR SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87706000

DRIVER SEAT

1шт.

ASSY CONTAINS REF 2-29

1шт.

2

KHN17701

DRIVER SEAT

1шт.

3

KHN17741

DRIVER SEAT

1шт.

4

KHN2194

BACKREST

1шт.

5

76095004

DRIVER'S SEAT COVER

1шт.

6

KHN2196

SEAT CUSHION

1шт.

7

87706003

KIT

Lumbar

1шт.

8

87706099

SEAT

1шт.

10

KHN17720

DRIVER SEAT

1шт.

11

87350977

SEAT HEADREST

1шт.

12

6550485

HANDLE

1шт.

13

6550487

COWL

1шт.

14

6550488

SPACER

1шт.

15

6550489

CHANNEL

1шт.

16

87706004

SUSPENSION

1шт.

17

76095011

KIT

Shock/Spring

1шт.

18

6550491

LEVER

1шт.

19

76095015

KIT

Ride Indicator

1шт.

20

76095010

KIT

Up Stop/Bump Stop

1шт.

21

87706005

COMPRESSOR

1шт.

22

76095009

KIT

Air Spring

1шт.

23

76095016

KIT

Combination Valve

1шт.

25

87706010

ELECTRIC CABLE

1шт.

26

6550490

BELLOWS

1шт.

27

6550496

KIT

Fore and Aft Adjustment

1шт.

28

6550497

HANDLE

1шт.

29

87706012

SEAT BELT

1шт.
