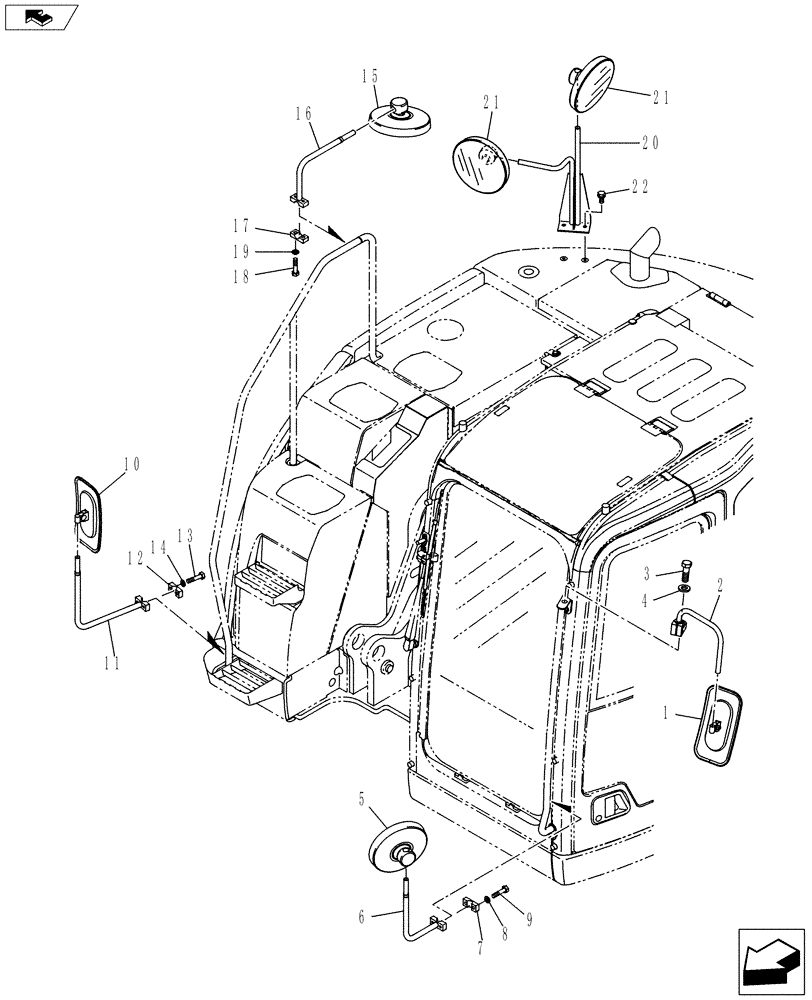

Запчасти Case CX145C SR (90.118.BM) - REAR VIEW MIRROR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

KHP13190

REAR VIEW MIRROR,166mm x 330mm

1шт.

2

KHP11350

SUPPORT

1шт.

3

KHP15020

BOLT,Hex

1шт.

4

157528A1

WASHER

1шт.

5

KHP15130

REAR VIEW MIRROR

1шт.

6

KHP14990

MIRROR ARM

1шт.

7

169338A1

CLAMP

1шт.

8

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

2шт.

9

892-11010

LOCK WASHER,M10

2шт.

10

KHP13190

REAR VIEW MIRROR,166mm x 330mm

1шт.

11

KHP17600

STAY

1шт.

12

169338A1

CLAMP

1шт.

13

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

2шт.

14

892-11010

LOCK WASHER,M10

2шт.

15

KHP15130

REAR VIEW MIRROR

1шт.

16

KHP14990

MIRROR ARM

1шт.

17

169338A1

CLAMP

1шт.

18

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

2шт.

19

892-11010

LOCK WASHER,M10

2шт.

20

KMP11680

MIRROR ARM

1шт.

21

KHP15130

REAR VIEW MIRROR

2шт.

22

166052A1

BOLT

2шт.
