/ / / / / / / / (90.100.AD[07]) - HOUSING

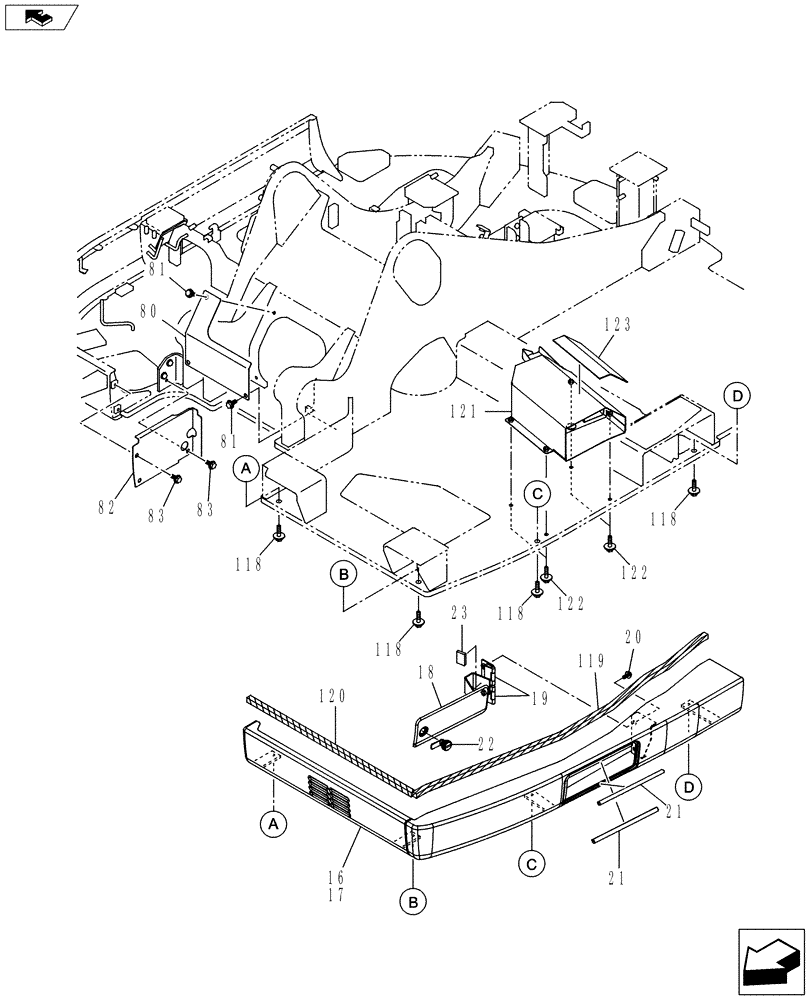

Запчасти Case CX145C SR (90.100.AD[07]) - HOUSING (90) - PLATFORM, CAB, BODYWORK AND DECALS
![Схема запчастей Case CX145C SR - (90.100.AD[07]) - HOUSING (90) - PLATFORM, CAB, BODYWORK AND DECALS](https://partsell.ru/storage/images/casece/2649153.png)
82
22
119
20
121
122
23
16
home
21
122
80
81
21
17
118
118
19
118
83
81
118
18
83
123
120
16
KMN14310NA
COVER
1шт.
ASSY CONTAINS REF 17-23
1шт.
17
KMN14320Y2
COVER
1шт.
18
KMN14330Y2
COVER
1шт.
19
KAN3271
HINGE
2шт.
20
KHN24890
BOLT
2шт.
21
151366A1
CUSHION ASSY.
2шт.
22
KNN0469
LOCK
1шт.
23
KHN3463
SEAL
1шт.
80
KMN14980Y2
COVER
1шт.
81
KHN24890
BOLT
3шт.
82
KMN14540Y2
COVER
1шт.
83
KHN24890
BOLT
3шт.
118
KHN24940
BOLT
4шт.
119
KHN33360
CUSHION
1шт.
120
KHN33370
CUSHION
1шт.
121
KMN14810
COVER
1шт.
122
KHN24940
BOLT
4шт.
123
KHN33780
PLATE
1шт.
