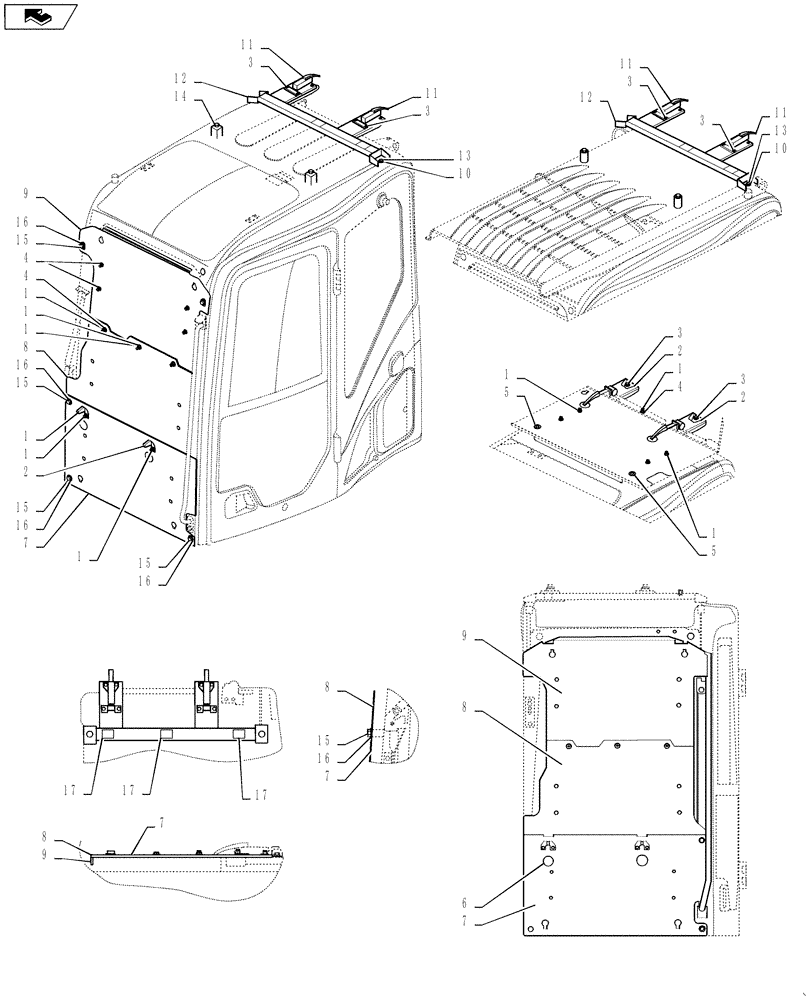

Запчасти Case CX145C SR (88.100.08) - DIA KIT - COVER, VANDAL GUARD (88) - ACCESSORIES

0

KG0HN542-00

CONSTRUCTION DIA

DIA KIT, Cover, Vandal Guard

1шт.

1

150469A1

FLANGE NUT

Flanged

11шт.

2

150856A1

STOP LOCK

4шт.

3

166350A1

BOLT

8шт.

4

KHN0539

WASHER

3шт.

5

166351A1

BOLT,Sems, M10 x 20mm

2шт.

6

151756A1

PLATE WASHER

2шт.

7

KHN32680

COVER

1шт.

8

KHN32720

COVER

1шт.

9

KHN32690

COVER

1шт.

10

150811A1

WASHER

6шт.

11

150854A1

FASTENER

2шт.

12

KHN32700

BRACKET

1шт.

13

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

6шт.

14

KHN14470

SPACER

2шт.

15

102R016Y025R

BOLT

2шт.

16

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

2шт.

17

KNJ2616

PLATE

3шт.
