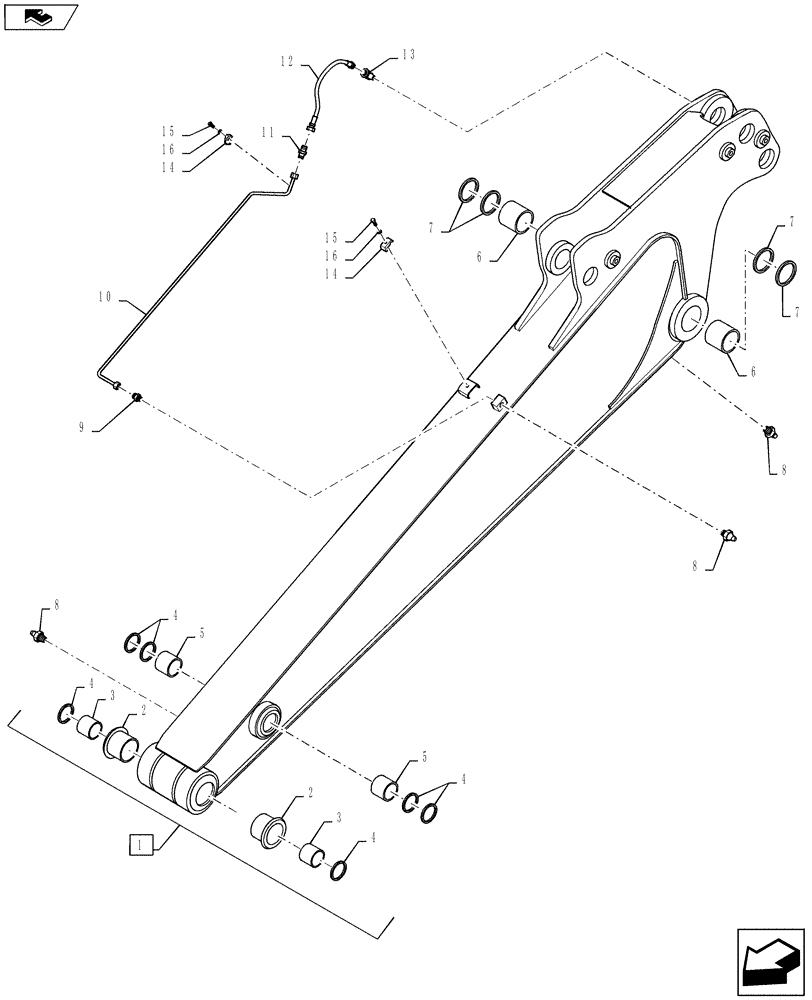

Запчасти Case CX145C SR (84.912.AA[04]) - DIPPER - LONG 2.41M (OFFSET) (84) - BOOMS, DIPPERS & BUCKETS

1

KMV19450

ARM

Arm, Long, Incl 2 - 7

1шт.

2

KNV1130

BUSHING

Steel

2шт.

3

KNV17560

BUSHING

Steel

2шт.

4

160674A1

SEAL,65mm ID x 80mm OD x 5mm Thk

Dust

6шт.

5

KNV1138

BUSHING,65mm ID x 80mm OD x 50mm L

EMS

2шт.

6

KNV1144

SELF LUB RING

2шт.

7

160400A1

SEAL,75mm ID x 90mm OD x 5mm Thk

Dust

4шт.

8

153630A1

LUBE NIPPLE

3шт.

9

152599A1

MULTIPOLE CONNECTOR

1шт.

10

KMV19570

PIPE

Pipe Assy

1шт.

11

152032A1

UNION

1шт.

12

153698A1

HOSE

Nylon

1шт.

13

163319A1

ELBOW

1шт.

14

151504A1

CLAMP

Replaced by 168377A1 CKKP990112

2шт.

15

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

Replaced by 43235

2шт.

16

153081A1

WASHER

2шт.
