/ / / / / / / / (71.460.AF[02]) - GREASE LINE (OFFSET)

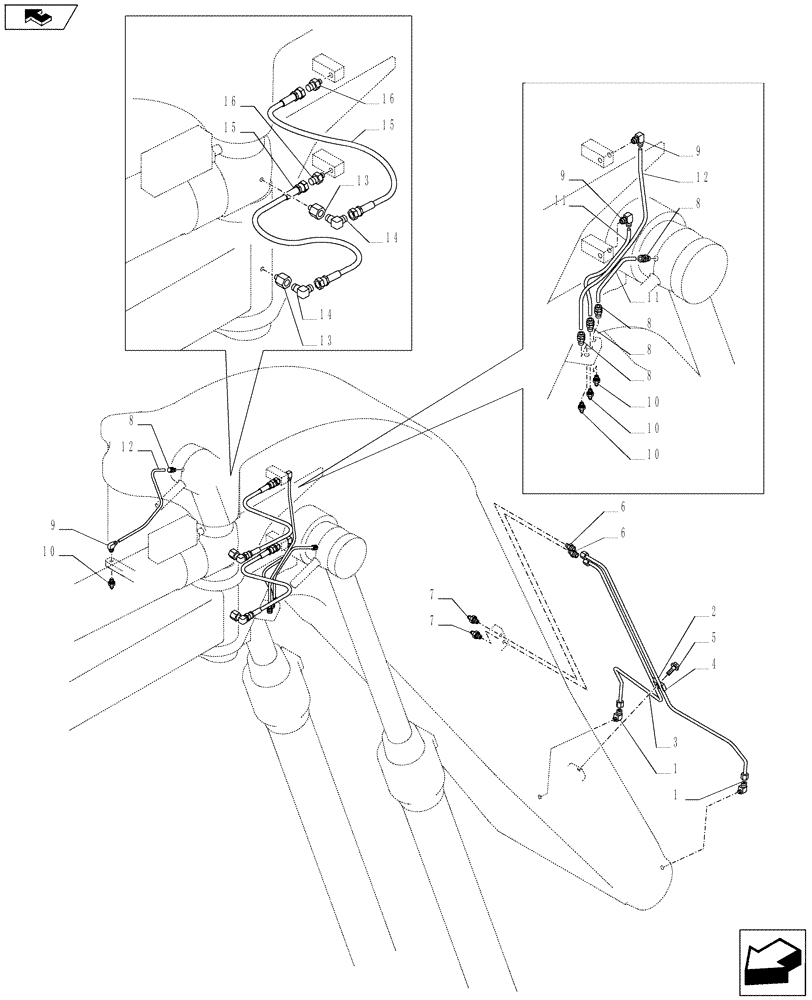

Запчасти Case CX145C SR (71.460.AF[02]) - GREASE LINE (OFFSET) (71) - LUBRICATION SYSTEM
![Схема запчастей Case CX145C SR - (71.460.AF[02]) - GREASE LINE (OFFSET) (71) - LUBRICATION SYSTEM](https://partsell.ru/storage/images/casece/3756838.png)
9
8
10
10
11
15
8
1
14
16
3
8
10
10
16
8
home
7
13
6
8
11
5
4
1
13
12
7
6
14
12
2
15
9
9
1
152627A1
ELBOW
2шт.
2
KMV16280
PIPE
1шт.
3
KMV16290
PIPE
1шт.
4
153774A1
CLAMP
1шт.
5
167182A1
BOLT,Sems, M8 x 25mm
1шт.
6
152599A1
MULTIPOLE CONNECTOR
2шт.
7
M01X0812
LUBE NIPPLE
2шт.
8
150190A1
FITTING
5шт.
9
152838A1
FITTING
3шт.
10
M01X0812
LUBE NIPPLE
4шт.
11
KMV16300
TUBE
2шт.
12
KRC0237
PLASTIC-RUBBER TUBE
1шт.
13
153775A1
FITTING
2шт.
14
C4E5507
ADAPTER
2шт.
15
KHV0498
HOSE
2шт.
16
KRJ4050
ADAPTER
2шт.
