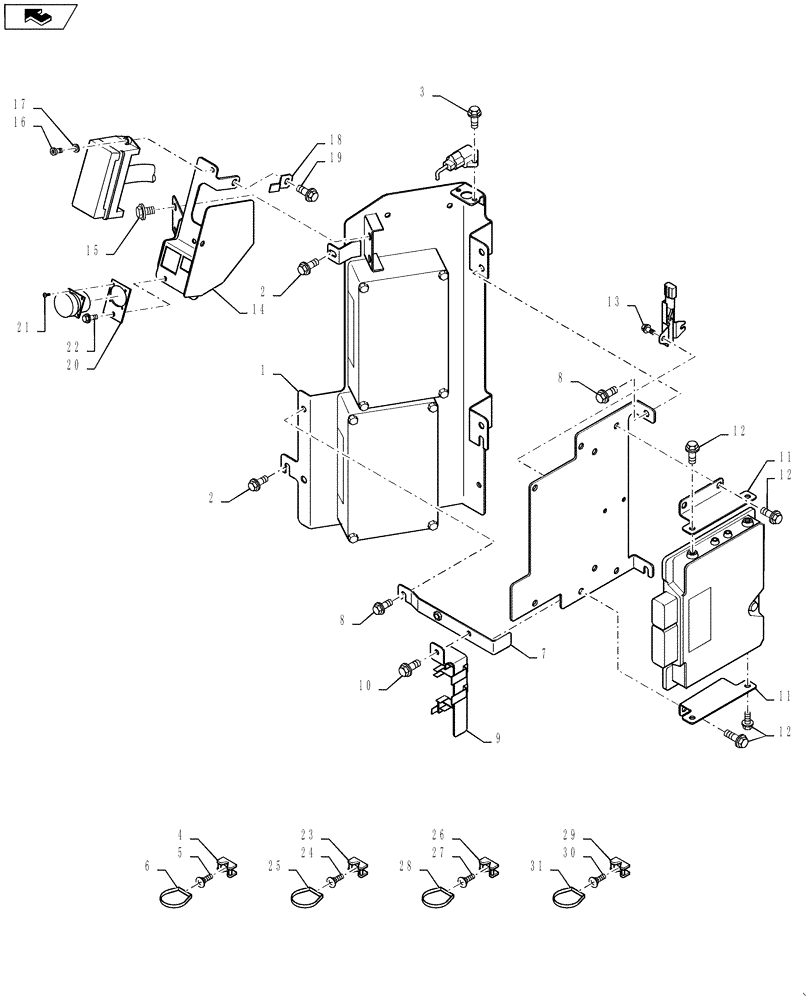

Запчасти Case CX145C SR (55.510.AB[06]) - ELECTRIC PARTS AND WIRE HARNESS (55) - ELECTRICAL SYSTEMS

1

KHR25760

BRACKET

1шт.

2

166345A1

BOLT

4шт.

3

KHR1831

BOLT

2шт.

4

150860A1

COLLAR

3шт.

5

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

3шт.

6

150496A1

MOUNTING CLIP

3шт.

7

KHR32060

BRACKET

1шт.

8

166345A1

BOLT

3шт.

9

KHR25730

BRACKET

1шт.

10

159602A1

BOLT,Sems, Hex, M6 x 16mm

1шт.

11

KHR25830

BRACKET

2шт.

12

166345A1

BOLT

8шт.

13

159602A1

BOLT,Sems, Hex, M6 x 16mm

2шт.

14

KHR32070

BRACKET

1шт.

15

166345A1

BOLT

2шт.

16

108R006Y020R

BOLT

2шт.

17

892-11006

LOCK WASHER,M6

2шт.

18

KHR3748

COLLAR

1шт.

19

166345A1

BOLT

1шт.

20

KHR28580

BRACKET, SUPPORTING

1шт.

21

162061A1

SCREW,Pan Hd, M3 x 8mm

4шт.

22

159602A1

BOLT,Sems, Hex, M6 x 16mm

1шт.

23

150860A1

COLLAR

1шт.

24

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

25

150496A1

MOUNTING CLIP

1шт.

26

150860A1

COLLAR

7шт.

27

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

7шт.

28

150496A1

MOUNTING CLIP

7шт.

29

150860A1

COLLAR

2шт.

30

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

31

150496A1

MOUNTING CLIP

2шт.
