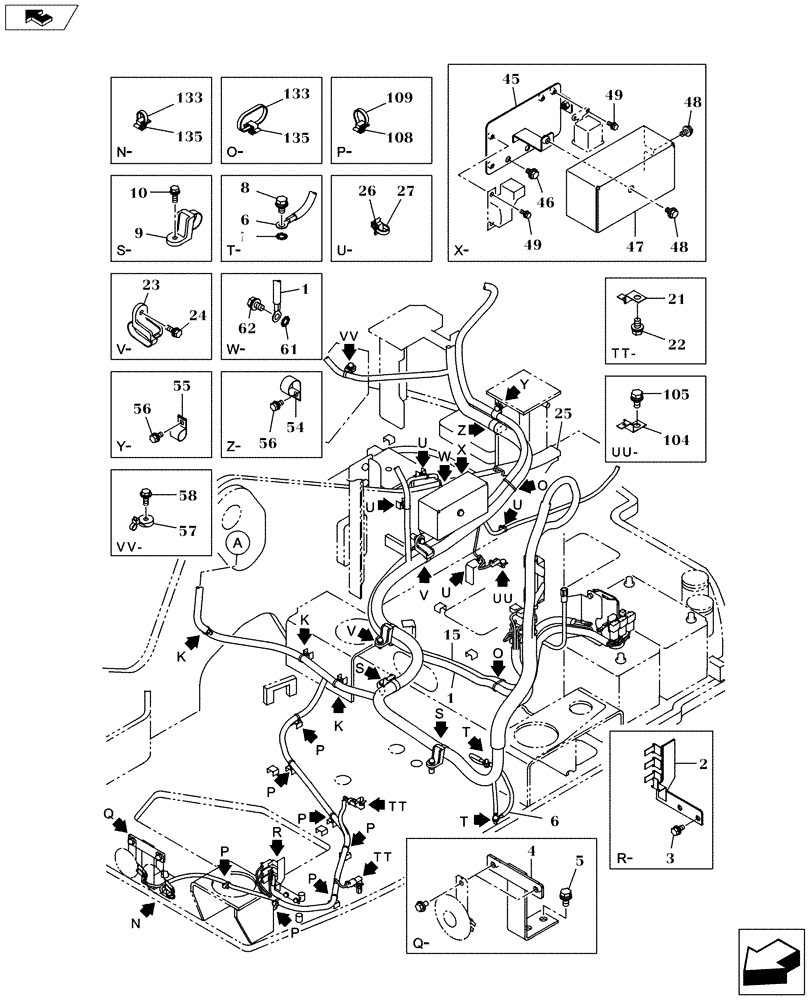

Запчасти Case CX145C SR (55.510.AB[02]) - ELECTRIC PARTS AND WIRE HARNESS (55) - ELECTRICAL SYSTEMS

1

KMR11940

WIRE HARNESS

1шт.

2

KMR11010

BRACKET

1шт.

3

159602A1

BOLT,Sems, Hex, M6 x 16mm

2шт.

4

KMR11780

BRACKET

1шт.

5

166351A1

BOLT,Sems, M10 x 20mm

2шт.

6

KHR11090

GROUND CABLE

1шт.

8

167518A1

BOLT

2шт.

9

KHR2581

CLAMP

2шт.

10

KHJ1215

BOLT,Spcl

2шт.

15

KHR11050

ELECTRIC CABLE

1шт.

21

KHR2581

CLAMP

2шт.

22

KHJ1215

BOLT,Spcl

2шт.

23

KHR10220

MOUNTING CLIP

5шт.

24

150496A1

MOUNTING CLIP

5шт.

25

KHR10220

MOUNTING CLIP

1шт.

26

150496A1

MOUNTING CLIP

1шт.

27

150496A1

MOUNTING CLIP

5шт.

45

166345A1

BOLT

2шт.

46

159602A1

BOLT,Sems, Hex, M6 x 16mm

4шт.

47

KMR12150

BRACKET

1шт.

48

166351A1

BOLT,Sems, M10 x 20mm

2шт.

49

KHR2581

CLAMP

1шт.

54

KHR2584

CLAMP

1шт.

55

KHJ1215

BOLT,Spcl

1шт.

56

893-11010

LOCK WASHER,Ext Tooth, M10

1шт.

57

KHJ2298

BOLT,Spcl

1шт.

58

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

61

150496A1

MOUNTING CLIP

3шт.

62

KHR10220

MOUNTING CLIP

1шт.

104

150496A1

MOUNTING CLIP

8шт.

105

KHR10220

MOUNTING CLIP

6шт.

108

150496A1

MOUNTING CLIP

7шт.

109

KHR2584

CLAMP

2шт.

133

150496A1

MOUNTING CLIP

13шт.

135

KHR10220

MOUNTING CLIP

3шт.
