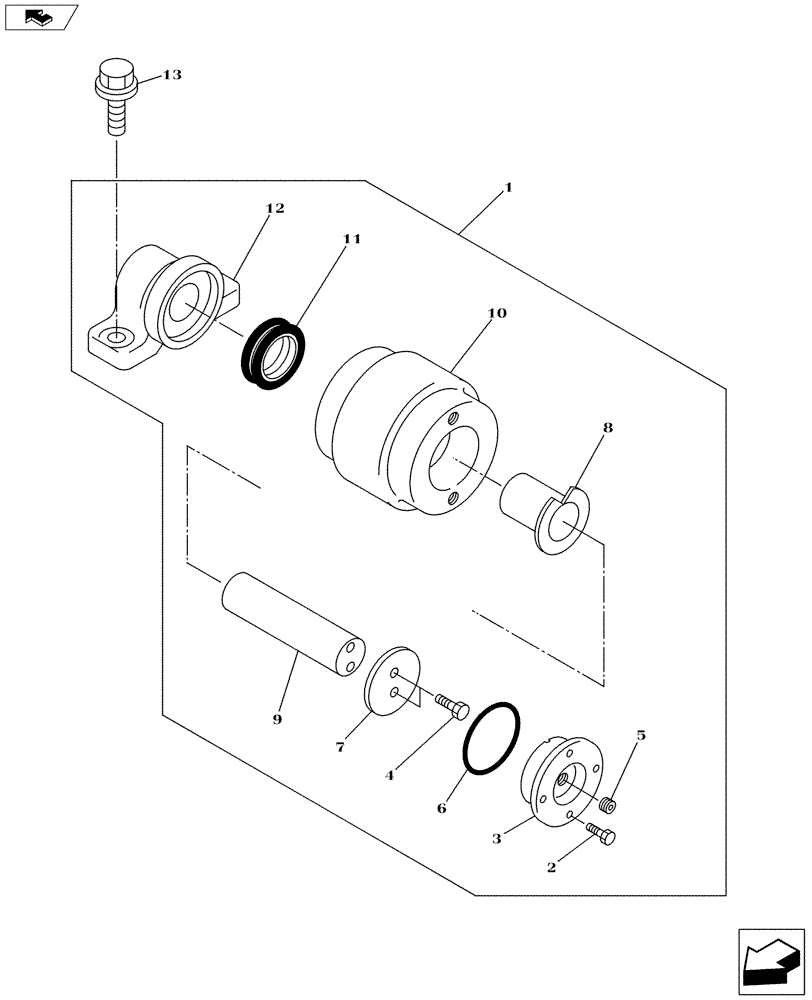

Запчасти Case CX145C SR (48.138.AB[01]) - UPPER ROLLER (48) - TRACKS & TRACK SUSPENSION

1

KMA1275

ROLLER ASSY.

2шт.

2

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

8шт.

3

KMA1278

COVER

2шт.

4

626-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 10.9, Full Thd

4шт.

5

150821A1

PLUG

2шт.

6

154657A1

O-RING

2шт.

7

KMA1285

PLATE

2шт.

8

KMA1270

BUSHING

2шт.

9

KMA1277

SPINDLE

2шт.

10

KMA1276

SHIFTER ROLLER

2шт.

11

KHA0038

SEAL

2шт.

12

KMA1279

CASING, BEARING ROLL

2шт.

13

166348A1

BOLT

4шт.
