(39.140.AM[02]) - COUNTERWEIGHT, SOLID 3.0 TON (OFFSET)

Запчасти Case CX145C SR (39.140.AM[02]) - COUNTERWEIGHT, SOLID 3.0 TON (OFFSET) (39) - FRAMES AND BALLASTING

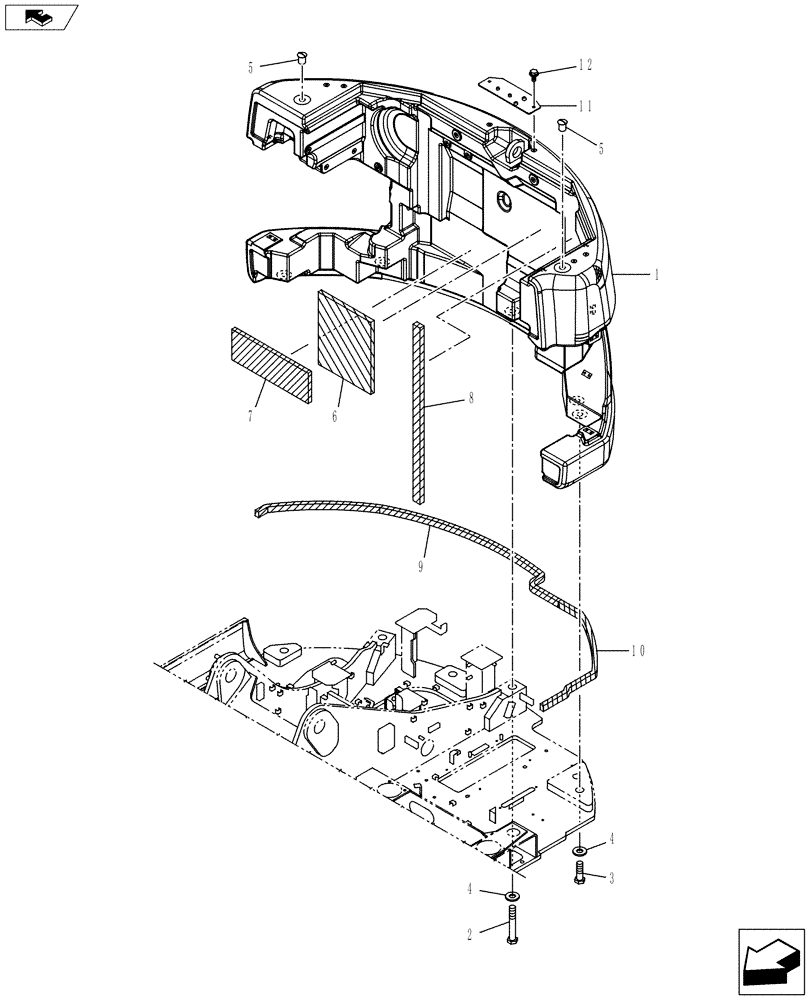

Схема запчастей Case CX145C SR - (39.140.AM[02]) - COUNTERWEIGHT, SOLID 3.0 TON (OFFSET) (39) - FRAMES AND BALLASTING
11
7
5
home
10
9
4
8
5
6
12
1
2
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KMB12220Y2

COUNTERWEIGHT

Counterweight, 3.0 Ton

1шт.

2

102R030W200N

BOLT

High Strength

2шт.

3

102R030W100N

BOLT

High Strength

3шт.

4

163858A1

WASHER

High Strength

5шт.

5

KHB0189

SCREW

2шт.

6

KMB12340

INSULATION

Acoustic

1шт.

7

KMN10940

NOISE PROTECTION

Acoustic

1шт.

8

KMB11880

SEAL

Cushion

1шт.

9

KMB11890

SEAL

Cushion

1шт.

10

KMB12330

SEAL

Cushion

1шт.

11

KMB12260B1

COVER

1шт.

12

KHN24890

BOLT

2шт.

13

KBN1106

SEAL

Seal, Cushion, Not Shown

1шт.

Выбрано товаров: 13
