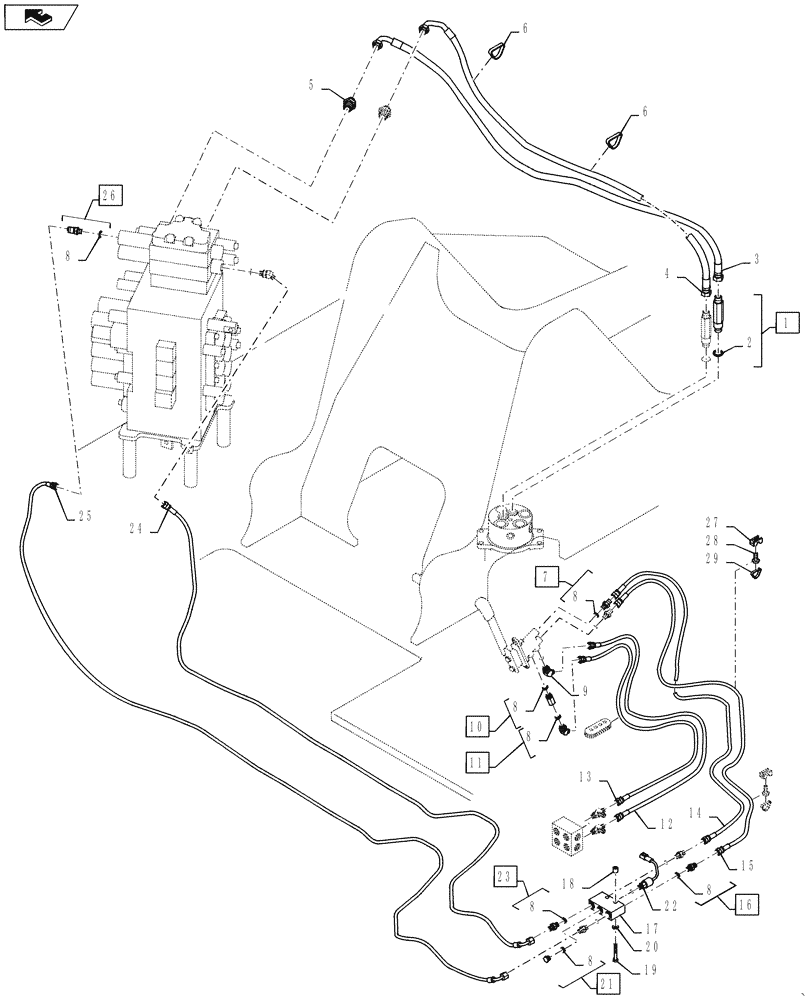

Запчасти Case CX145C SR (35.741.AJ[05]) - BLADE LINE (OFFSET) (35) - HYDRAULIC SYSTEMS

1

KHJ2232

ADAPTER

Incl 2

2шт.

2

154487A1

O-RING

1шт.

3

KMJ17310

HYDRAULIC HOSE

Hose, Hyd, 210-12X1590 5+905 G

1шт.

4

KMJ17320

HYDRAULIC HOSE

Hose, Hyd, 210-12X1500 5+905 G

1шт.

5

168988A1

ADAPTER

Hose

2шт.

6

150071A1

MOUNTING CLIP

Cable Tie

2шт.

7

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl 8

2шт.

8

154467A1

O-RING,10.8mm ID x 2.4mm Width

NBR70K6 10.80IDX240

8шт.

9

KHJ0994

ADAPTER

Hose, Incl 8

1шт.

10

162525A1

STUD

Incl 8

1шт.

11

150933A1

ELBOW

45 deg, Incl 8

1шт.

12

KHJ2057

HOSE

Nylon

1шт.

13

KHJ2311

HOSE

Nylon

1шт.

14

KHJ2063

HOSE

Nylon

1шт.

15

KHJ2061

HOSE

Nylon

1шт.

16

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl 8

2шт.

17

KHJ17110

VALVE

Shuttle

1шт.

18

KMJ15260

SPACER

Pipe

2шт.

19

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

Replaced by 86625005

2шт.

20

153081A1

WASHER

2шт.

21

159002A1

PLUG

Incl 8

1шт.

22

KHR21490

PRESSURE SWITCH

1шт.

23

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl 8

2шт.

24

KHJ2198

HOSE,6.3mm ID x 2850mm L

Nylon

1шт.

25

KHJ13650

HYDRAULIC HOSE

Nylon

1шт.

26

150933A1

ELBOW

45 deg, Incl 8

2шт.

27

150860A1

COLLAR

Clamp, Mount

2шт.

28

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

PNH M6X8 TYPE H 4.8 ZND

2шт.

29

150496A1

MOUNTING CLIP

Cable Tie

3шт.
