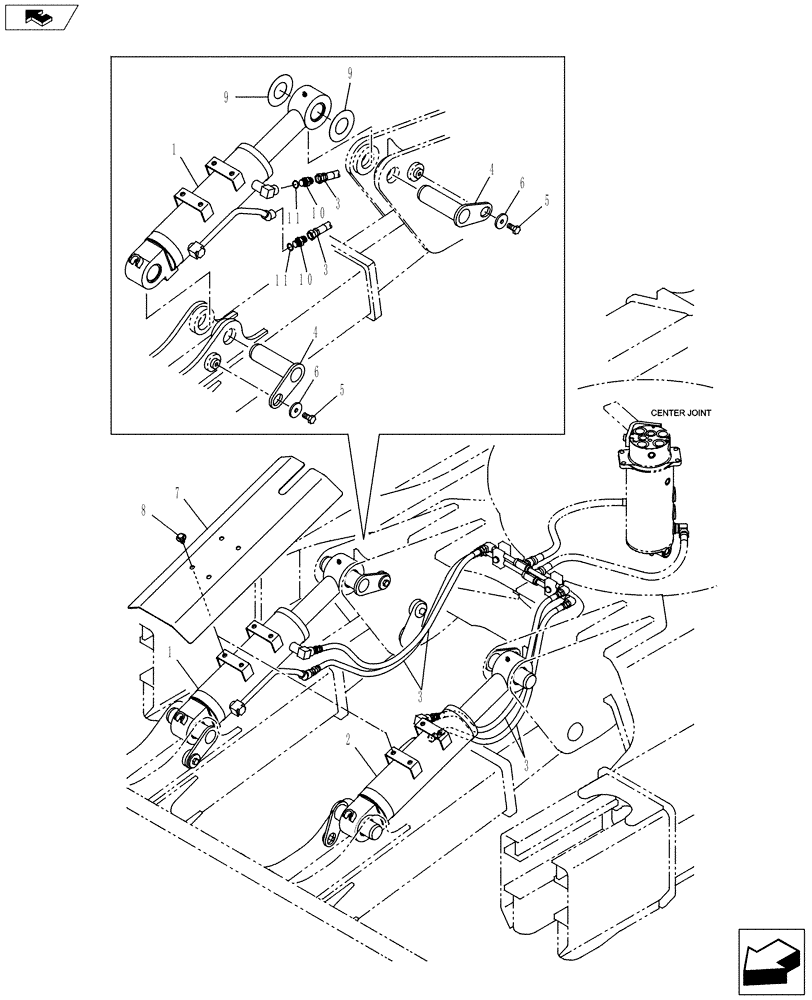

Запчасти Case CX145C SR (35.741.AJ[04]) - BLADE CYLINDER LINE (35) - HYDRAULIC SYSTEMS

1

KMV18480

HYDRAULIC CYLINDER

1шт.

1

KMV18480R

REMAN-HYD CYLINDER

CX145C SR CRAWLER EXCAVATOR TIER 4 (NA) (8/12-)

1шт.

1

KMV18480C

CORE-HYD CYLINDER

Return Number

1шт.

2

KMV18490

HYDRAULIC CYLINDER

1шт.

2

KMV18490R

REMAN-HYD CYLINDER

CX145C SR CRAWLER EXCAVATOR TIER 4 (NA) (8/12-)

1шт.

2

KMV18490C

CORE-HYD CYLINDER

Return Number

1шт.

3

KMV18680

HYDRAULIC HOSE

4шт.

4

KMV15670

PIN

4шт.

5

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

6

157141A1

WASHER

1шт.

7

KMV18500

COVER

2шт.

8

167893A1

BOLT

8шт.

9

KAV0395

SHIM

4шт.

10

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl 11

1шт.

11

154475A1

O-RING

4шт.
