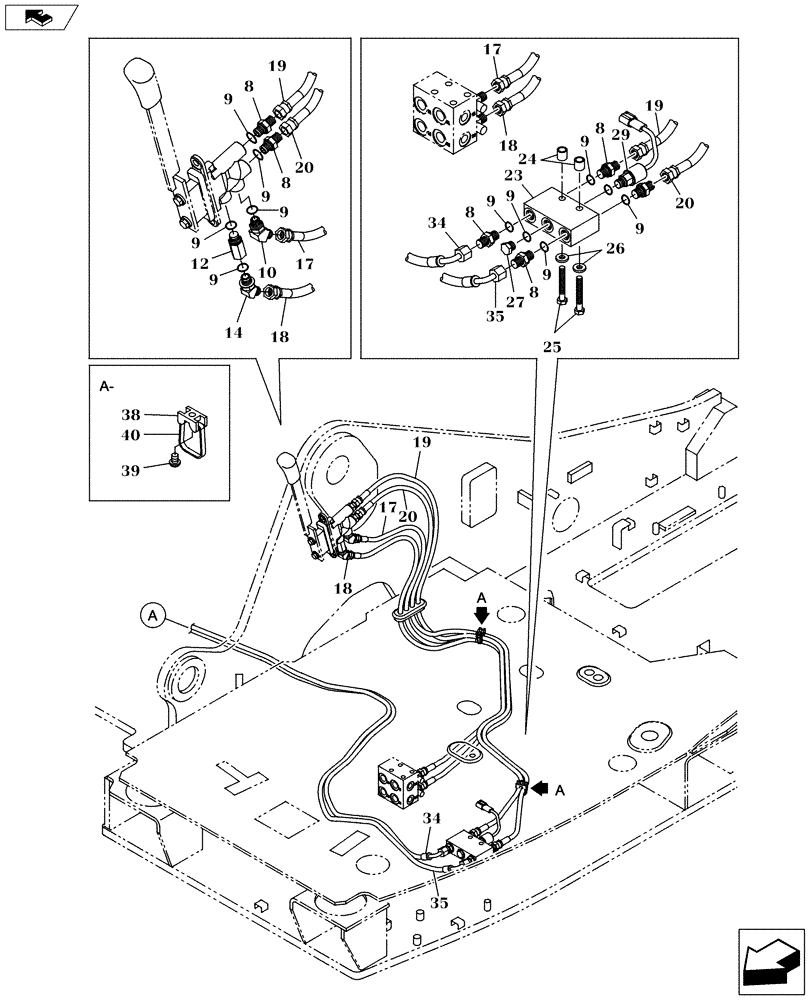

Запчасти Case CX145C SR (35.741.AJ[02]) - BLADE LINE (35) - HYDRAULIC SYSTEMS

8

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

6шт.

9

154467A1

O-RING,10.8mm ID x 2.4mm Width

6шт.

10

KHJ0994

ADAPTER

1шт.

12

162525A1

STUD

1шт.

14

150933A1

ELBOW

1шт.

17

KHJ2057

HOSE

1шт.

18

KHJ2311

HOSE

1шт.

19

KHJ2063

HOSE

1шт.

20

KHJ2061

HOSE

1шт.

23

KHJ17110

VALVE

1шт.

24

KMJ15260

SPACER

2шт.

25

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

2шт.

26

153081A1

WASHER

2шт.

27

159002A1

PLUG

1шт.

29

KHR21490

PRESSURE SWITCH

1шт.

34

KHJ2198

HOSE,6.3mm ID x 2850mm L

1шт.

35

KHJ13650

HYDRAULIC HOSE

1шт.

38

150860A1

COLLAR

2шт.

39

145N006S008R

SCREW,Pan Hd, M6 x 8mm, Cl 10.9

2шт.

40

150496A1

MOUNTING CLIP

3шт.
