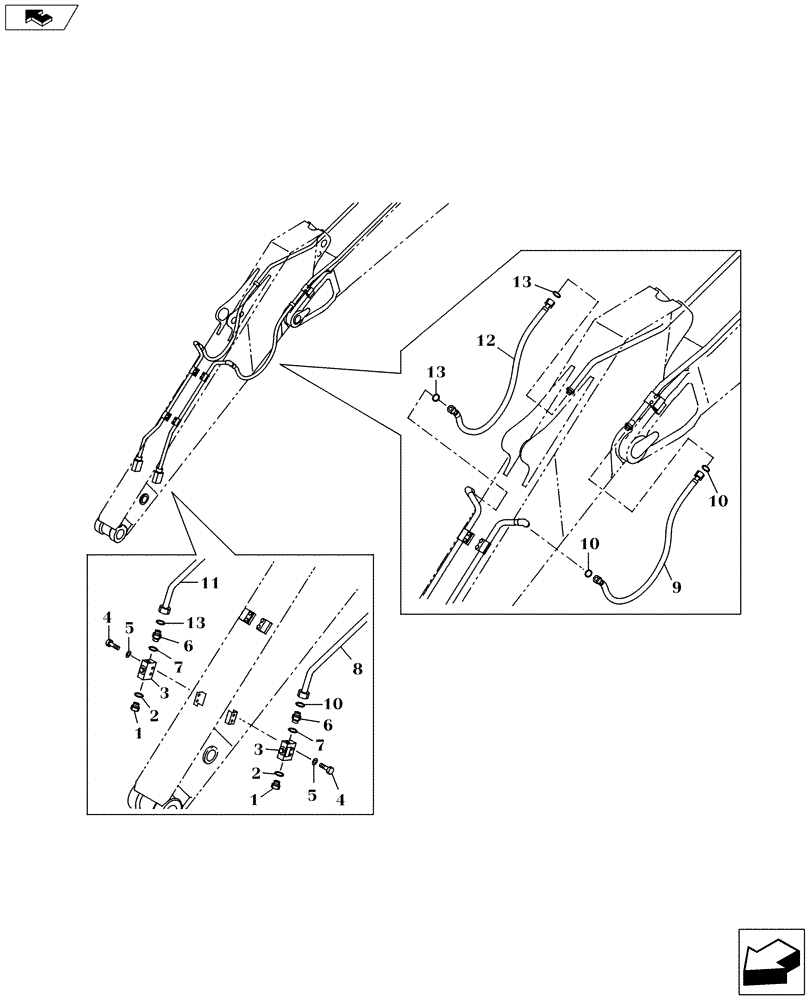

Запчасти Case CX145C SR (35.738.AE[06]) - BUCKET CYLINDER LINES - SB LONG (OFFSET) (35) - HYDRAULIC SYSTEMS

1

KMV16030

BUCKET CYLINDER

Bucket Cylinder EMS, Incl 2 - 4

1шт.

1

KMV16030R

REMAN-HYD CYLINDER

CX145C SR CRAWLER EXCAVATOR, TIER 4 (NA), Bucket Cylinder EMS, SB LONG (OFFSET) (8/12-)

1шт.

1

KMV16030C

CORE-HYD CYLINDER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Bucket Cylinder, EMS, Incl in 1

1шт.

3

KNV1139

SELF LUB RING

1шт.

4

KNV1141

SELF LUB RING

EMS

1шт.

5

155204A1

O-RING

1шт.

6

KMV19250

PIN

PIN, EMS

1шт.

7

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

Replaced by 398792

1шт.

8

157141A1

WASHER

High Strength

1шт.

9

150142A1

SHIM KIT

1шт.

10

KMV19580

HYDRAULIC HOSE

Hose, Hyd, S15-12X5650 5 KO GW

1шт.

11

KMV19590

HYDRAULIC HOSE

Hose, Hyd, S15-12X5650 5 KO GW

1шт.

12

KHJ0507

ADAPTER

Hose

1шт.

13

KHJ2041

ADAPTER

Hose

1шт.
