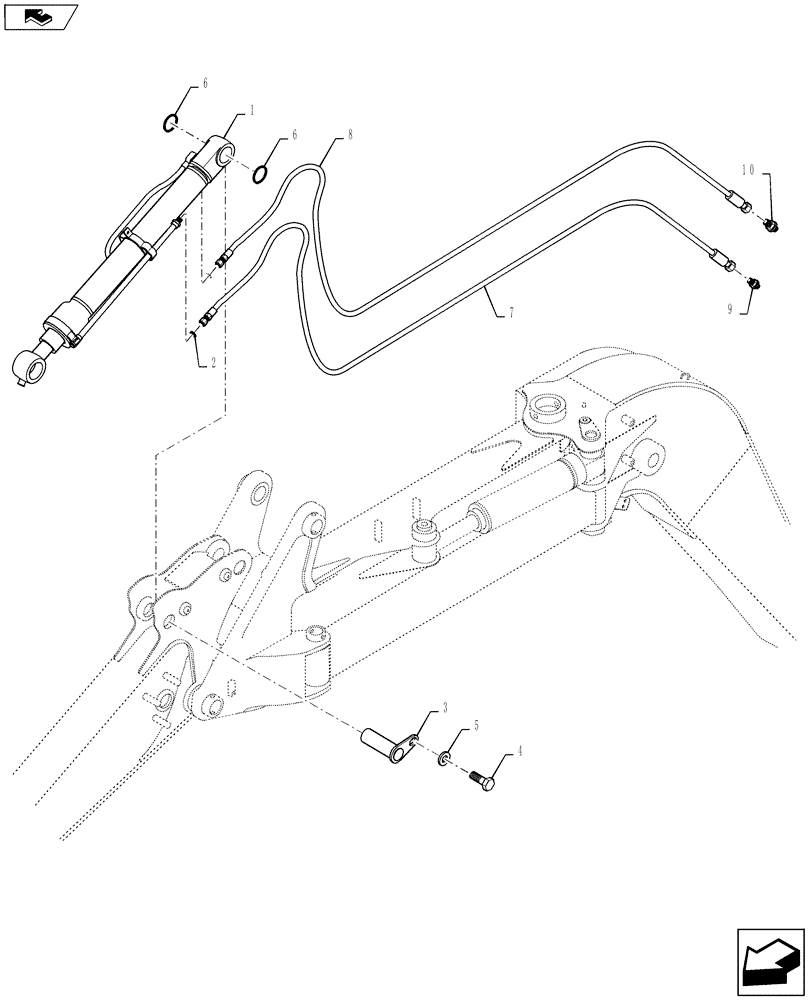

Запчасти Case CX145C SR (35.738.AE[05]) - BUCKET CYLINDER LINES - SB EMS (OFFSET) (35) - HYDRAULIC SYSTEMS

1

KMV16030

BUCKET CYLINDER

Cylinder, Bucket, EMS

1шт.

1

KMV16030R

REMAN-HYD CYLINDER

CX145C SR CRAWLER EXCAVATOR, TIER 4 (NA), Cylinder, Bucket, SB EMS (OFFSET) (8/12-)

1шт.

1

KMV16030C

CORE-HYD CYLINDER

Return Number

1шт.

2

155204A1

O-RING

2шт.

3

KMV19250

PIN

Pin, EMS

1шт.

4

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

Replaced by 398792

1шт.

5

157141A1

WASHER

High Strength

1шт.

6

150142A1

SHIM KIT

2шт.

7

KMV19260

HYDRAULIC HOSE

Hose, Hyd, L5350

1шт.

8

KMV19270

HYDRAULIC HOSE

Hose, Hyd, L5350

1шт.

9

KHJ0507

ADAPTER

Hose

1шт.

10

KHJ2041

ADAPTER

Hose

1шт.
