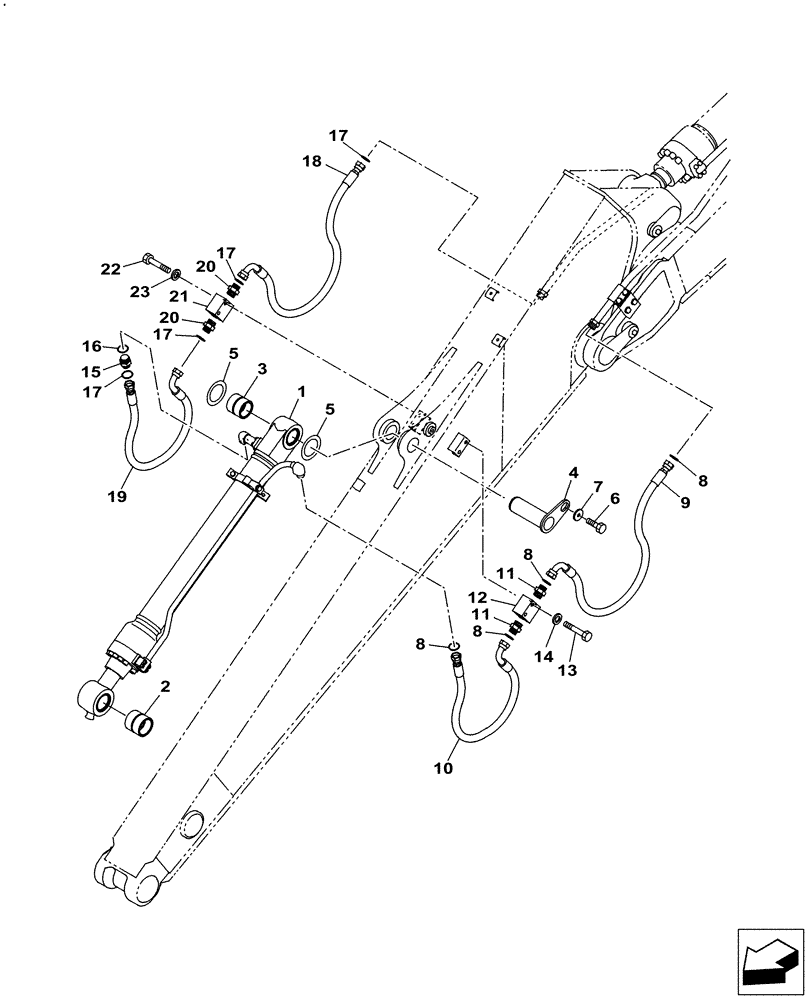

Запчасти Case CX145C SR (35.738.AE[04A]) - BUCKET CYLINDER LINES - LONG ARM, KYB - FROM SN NDS6E1256 (35) - HYDRAULIC SYSTEMS

1

KNV12541

BUCKET CYLINDER

ASSY, Incl 2 - 3

1шт.

2

KNV1139

SELF LUB RING

1шт.

3

KNV1141

SELF LUB RING

1шт.

4

KNV13460

PIN

1шт.

5

160734A1

SHIM

2шт.

6

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

7

157141A1

WASHER

1шт.

8

KHJ1360

O-RING,0.07" Thk x 0.739" ID

4шт.

9

KRV14220

HYDRAULIC HOSE

1шт.

10

KRV25390

HYDRAULIC HOSE

1шт.

11

KHJ1941

FITTING

2шт.

12

KNJ19690

MANIFOLD VALVE

1шт.

13

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

2шт.

14

150811A1

WASHER

2шт.

15

KHJ1348

ADAPTER

1шт.

16

150542A1

O-RING

1шт.

17

KHJ1360

O-RING,0.07" Thk x 0.739" ID

4шт.

18

KRV14220

HYDRAULIC HOSE

1шт.

19

KRV25390

HYDRAULIC HOSE

1шт.

20

KHJ1941

FITTING

2шт.

21

KNJ19690

MANIFOLD VALVE

1шт.

22

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

2шт.

23

150811A1

WASHER

2шт.
