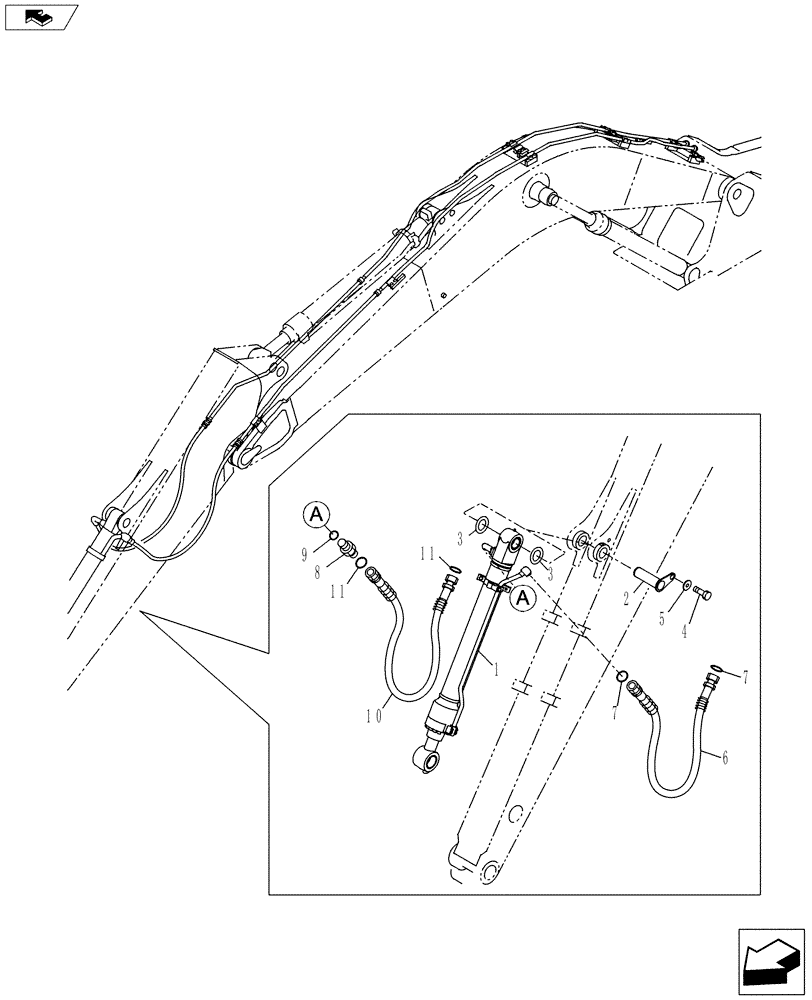

Запчасти Case CX145C SR (35.738.AE[04]) - BUCKET CYLINDER LINES - LONG ARM, KYB - UP TO SN NDS6E1255 (35) - HYDRAULIC SYSTEMS

1

KNV12541

BUCKET CYLINDER

1шт.

1

KNV12541R

REMAN-HYD CYLINDER

Bucket

1шт.

1

KNV12541C

CORE-HYD CYLINDER

Return Number

1шт.

2

KNV13460

PIN

1шт.

3

160734A1

SHIM

2шт.

4

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

5

157141A1

WASHER

1шт.

6

KNV17310

HYDRAULIC HOSE,1800.00 mm

1шт.

7

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

8

KHJ1348

ADAPTER

1шт.

9

154503A1

O-RING

1шт.

10

KNV17310

HYDRAULIC HOSE,1800.00 mm

1шт.

11

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.
