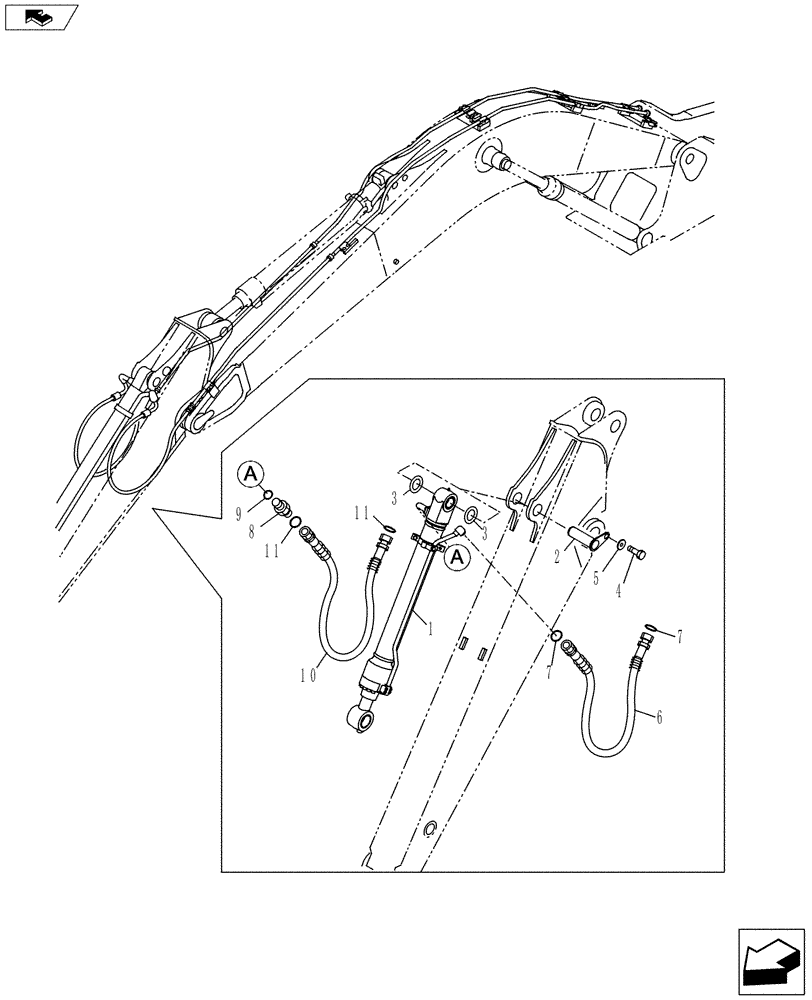

Запчасти Case CX145C SR (35.738.AE[03]) - BUCKET CYLINDER LINES - SHORT ARM, KYB (35) - HYDRAULIC SYSTEMS
![Схема запчастей Case CX145C SR - (35.738.AE[03]) - BUCKET CYLINDER LINES - SHORT ARM, KYB (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/casece/3686059.png)
3
home
1
6
1
1
1
5
2
7
1
3
4
7
11
9
10
11
8
№
Артикул
Название
Примечание
Количество
1
KNV12541
BUCKET CYLINDER
1шт.
1
KNV12541R
REMAN-HYD CYLINDER
Bucket
1шт.
1
KNV12541C
CORE-HYD CYLINDER
Return Number
1шт.
2
KNV13460
PIN
1шт.
3
160734A1
SHIM
2шт.
4
627-12025
BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd
Replaced by 398792
1шт.
5
157141A1
WASHER
High Strength
1шт.
6
KNV15701
HOSE ASSY.
LG 1650mm
1шт.
7
KHJ1360
O-RING,0.07" Thk x 0.739" ID
2шт.
8
KHJ1348
ADAPTER
Hose
1шт.
10
KNV15701
HOSE ASSY.
LG 1650mm
1шт.
11
KHJ1360
O-RING,0.07" Thk x 0.739" ID
2шт.
Выбрано товаров: 13
