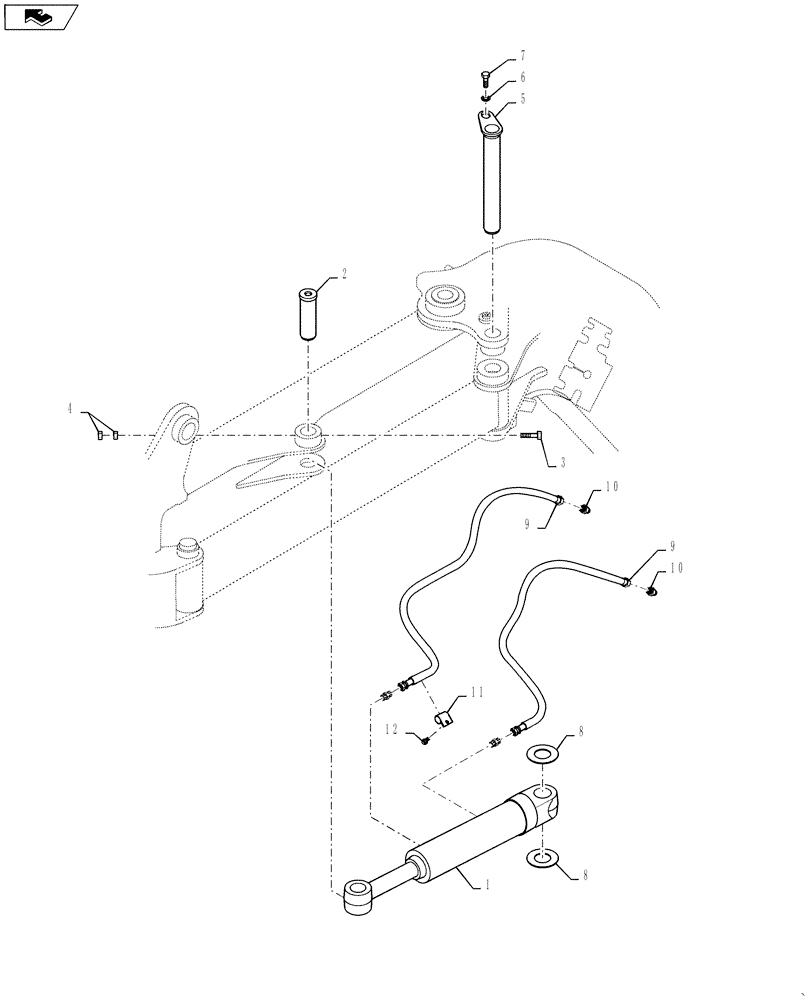

Запчасти Case CX145C SR (35.737.AE[13]) - CYLINDER LINE - OFFSET (35) - HYDRAULIC SYSTEMS

1

KMV2139

HYDRAULIC CYLINDER

Cylinder, Hyd, EMS

1шт.

2

KMV1618

PIN

Pin, ATT

1шт.

3

514-1112

BOLT,Hex, M16 x 1.5 x 140mm, Cl 10.9

M16X 1.5 X 140 CL10.9 ZND

1шт.

4

829-13416

NUT,M16 x 1.5, Cl 10

Replaced by 12164121

2шт.

5

KMV19280

PIN

Pin, ATT EMS

1шт.

6

157141A1

WASHER

High Strength

1шт.

7

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

Replaced by 398792

1шт.

8

161643A1

SHIM,66mm ID x 130mm OD x 1.2mm Thk

Plate

2шт.

9

KMV16000

HYDRAULIC HOSE

Hose, Hyd, 12X2250

2шт.

10

KHJ0507

ADAPTER

Hose

2шт.

11

KHV0471

HOSE CLAMP

1шт.

12

166345A1

BOLT

Bolt SEMS

1шт.
