(35.737.AE[12]) - DIPPER CYLINDER LINE - SB EMS HBCV (OFFSET)

Запчасти Case CX145C SR (35.737.AE[12]) - DIPPER CYLINDER LINE - SB EMS HBCV (OFFSET) (35) - HYDRAULIC SYSTEMS

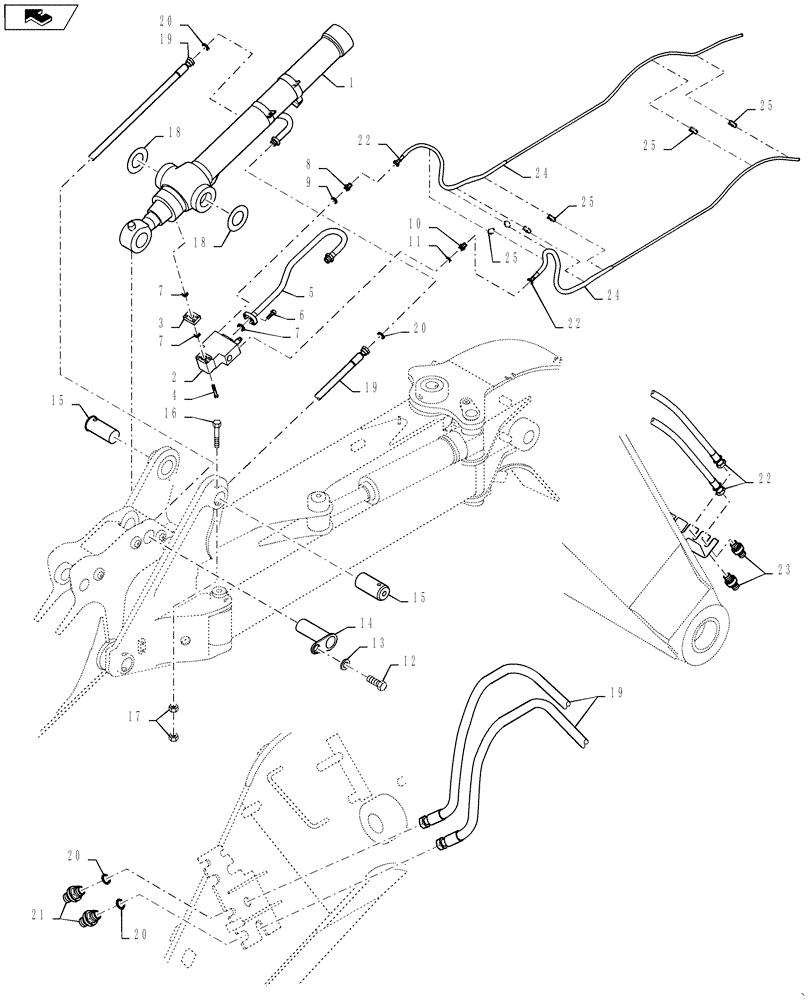

Схема запчастей Case CX145C SR - (35.737.AE[12]) - DIPPER CYLINDER LINE - SB EMS HBCV (OFFSET) (35) - HYDRAULIC SYSTEMS
18
25
7
19
25
8
5
21
22
12
22
17
16
20
15
25
24
9
25
23
10
19
24
7
13
14
2
11
19
20
home
20
15
6
20
18
7
22
3
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KMV19360

HYDRAULIC CYLINDER

Cylinder, Hyd, Arm SB EMS HBCV

1шт.

1

KMV19360R

REMAN-HYD CYLINDER

CX145C SR CRAWLER EXCAVATOR - TIER 4 (NA) (8/12-)

1шт.

1

KMV19360C

CORE-HYD CYLINDER

Return Number

1шт.

2

KNV26480

VALVE

Valve, Holding

1шт.

3

KHV11160

FLANGE

Flat

1шт.

4

108R010Y090R

BOLT

Bolt, HEX SOC HD

4шт.

5

KMV16220

PIPE

Pipe Assy

1шт.

6

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

7

155210A1

O-RING

3шт.

8

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl 9

1шт.

9

154475A1

O-RING

1шт.

10

152747A1

ADAPTER

Hose, Incl 11

1шт.

11

154467A1

O-RING,10.8mm ID x 2.4mm Width

NBR70K6 10.80IDX240

1шт.

12

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

Replaced by 398792

1шт.

13

157141A1

WASHER

High Strength

1шт.

14

KMV19320

PIN

Pin, ATT EMS

1шт.

15

KMV1656

PIN

Pin, ATT

2шт.

16

514-1038

BOLT,Hex, M16 x 1.5 x 160mm, Cl 10.9

M16-1.5 X 160 CLASS 10.9 ZND

2шт.

17

829-13416

NUT,M16 x 1.5, Cl 10

Replaced by 12164121

4шт.

18

KRV1177

SHIM

Plate

2шт.

19

KMV11340

HOSE ASSY.

2шт.

20

KHJ1360

O-RING,0.07" Thk x 0.739" ID

4шт.

21

KHJ2041

ADAPTER

Hose

1шт.

22

KHJ1809

HYDRAULIC HOSE,9.50 mm ID x 5100.00 mm

2шт.

23

162826A1

ADAPTER

Hose

2шт.

24

150773A1

PLASTIC-RUBBER TUBE

2шт.

25

150067A1

MOUNTING CLIP

Cable Tie

11шт.
