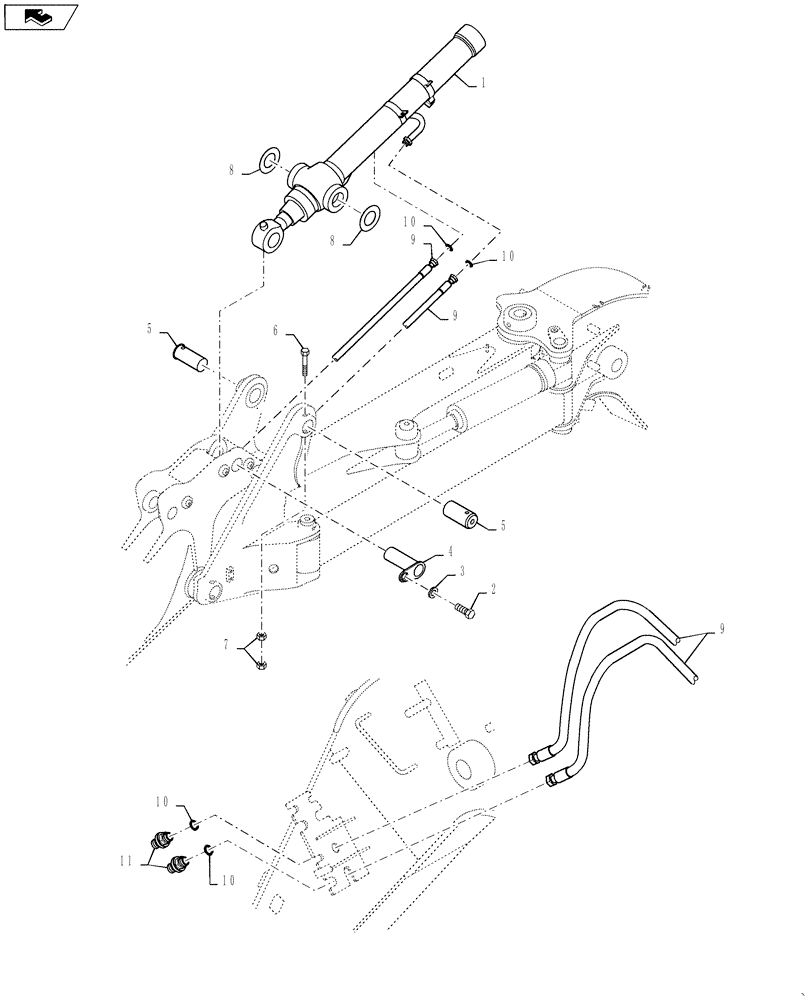

Запчасти Case CX145C SR (35.737.AE[11]) - DIPPER CYLINDER LINE - SB EMS (0FFSET) (35) - HYDRAULIC SYSTEMS

1

KMV19380

HYDRAULIC CYLINDER

Arm, Cylinder LineSB EMS

1шт.

1

KMV19380R

REMAN-HYD CYLINDER

CX145C SR CRAWLER EXCAVATOR - TIER 4 (NA), Arm, Cylinder LineSB EMS (8/12-)

1шт.

1

KMV19380C

CORE-HYD CYLINDER

Return Number

1шт.

2

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

Replaced by 398792

1шт.

3

157141A1

WASHER

High Strength

1шт.

4

KMV19320

PIN

Pin, ATT EMS

1шт.

5

KMV1656

PIN

Pin, ATT

2шт.

6

514-1038

BOLT,Hex, M16 x 1.5 x 160mm, Cl 10.9

M16-1.5 X 160 CLASS 10.9 ZND

2шт.

7

829-13416

NUT,M16 x 1.5, Cl 10

Replaced by 12164121

4шт.

8

KRV1177

SHIM

Plate

2шт.

9

KMV11340

HOSE ASSY.

Hydraulic

2шт.

10

KHJ1360

O-RING,0.07" Thk x 0.739" ID

4шт.

11

KHJ2041

ADAPTER

Hose

2шт.
