(35.737.AE[08]) - OPTION LINE - BAR BASE (LONG ARM)

Запчасти Case CX145C SR (35.737.AE[08]) - OPTION LINE - BAR BASE (LONG ARM) (35) - HYDRAULIC SYSTEMS

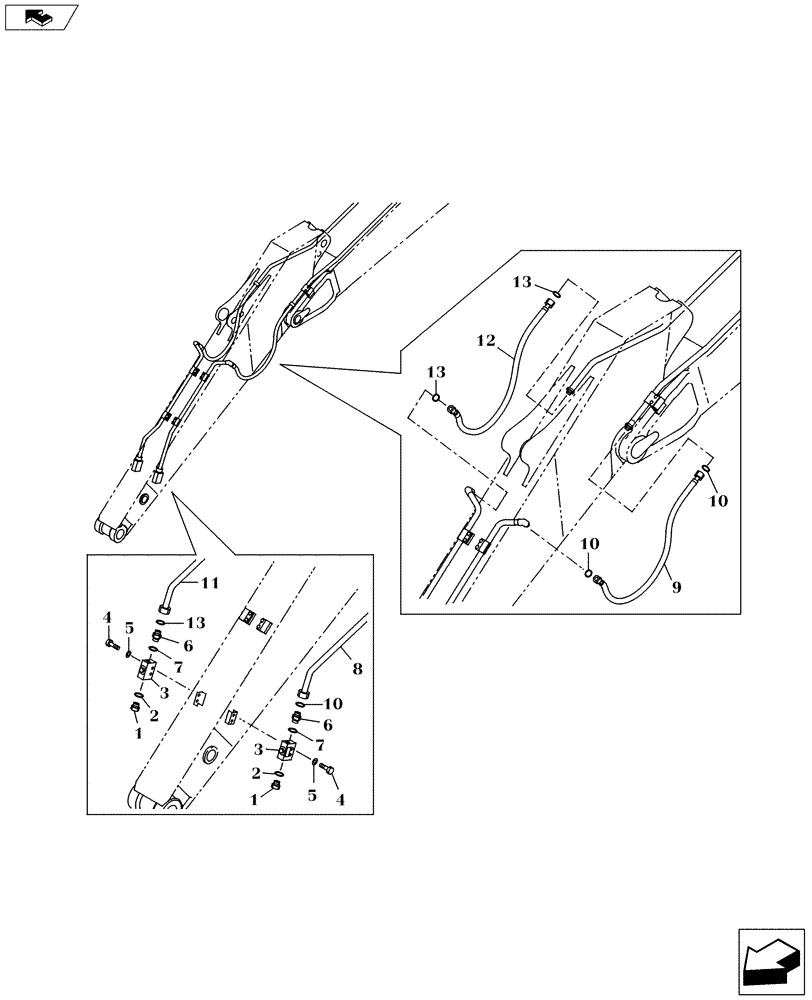

Схема запчастей Case CX145C SR - (35.737.AE[08]) - OPTION LINE - BAR BASE (LONG ARM) (35) - HYDRAULIC SYSTEMS
3
6
6
4
12
1
5
13
10
1
home
7
7
13
2
2
11
13
3
4
10
8
10
9
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

152924A1

PLUG

2шт.

2

154503A1

O-RING

2шт.

3

KHV10710

VALVE

2шт.

4

827-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 10.9

4шт.

5

150811A1

WASHER

4шт.

6

KHJ1348

ADAPTER

2шт.

7

154503A1

O-RING

2шт.

8

KNV16840

HYD TUBE

1шт.

9

KNV17310

HYDRAULIC HOSE,1800.00 mm

1шт.

10

KHJ1360

O-RING,0.07" Thk x 0.739" ID

3шт.

11

KNV16850

HYD TUBE

1шт.

12

KNV17310

HYDRAULIC HOSE,1800.00 mm

1шт.

13

KHJ1360

O-RING,0.07" Thk x 0.739" ID

3шт.

Выбрано товаров: 13
