(35.737.AE[05]) - SECOND OPTION LINE (SHORT ARM)

Запчасти Case CX145C SR (35.737.AE[05]) - SECOND OPTION LINE (SHORT ARM) (35) - HYDRAULIC SYSTEMS

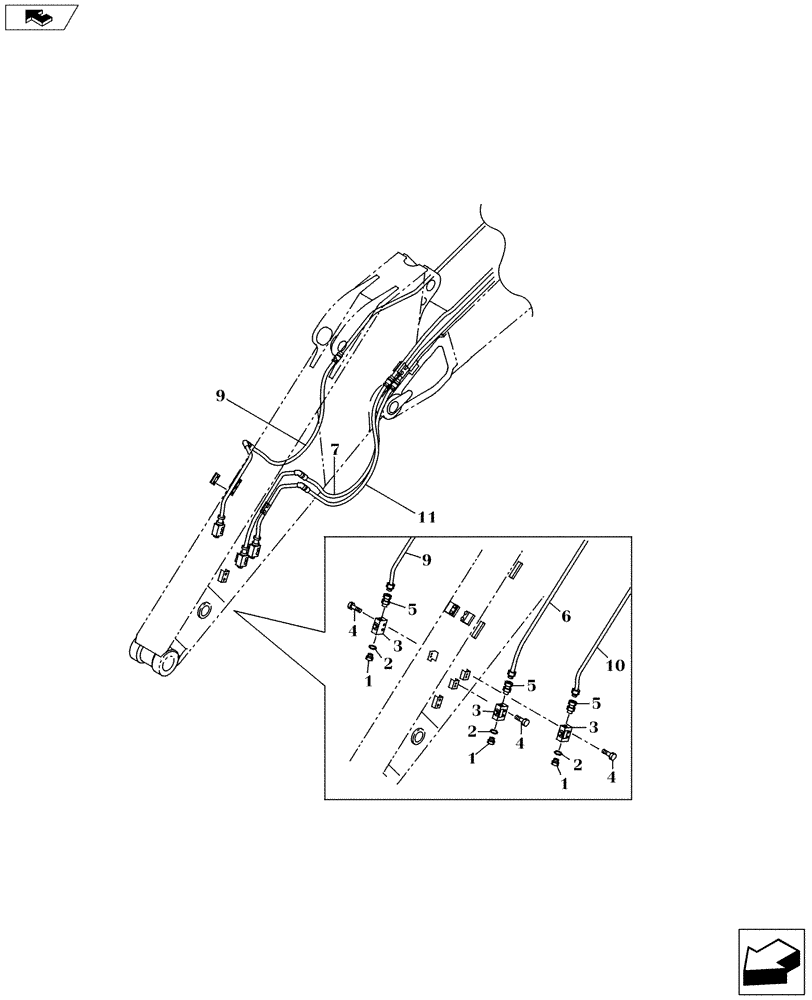

Схема запчастей Case CX145C SR - (35.737.AE[05]) - SECOND OPTION LINE (SHORT ARM) (35) - HYDRAULIC SYSTEMS
2
4
4
5
9
1
11
5
1
5
3
3
2
home
6
9
10
7
3
2
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

159085A1

PLUG

3шт.

2

154487A1

O-RING

3шт.

3

KHV10440

VALVE

3шт.

4

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

6шт.

5

KHJ1939

FITTING

3шт.

6

KNV15760

HYD TUBE

1шт.

7

KNV14100

HYDRAULIC HOSE,12.70 mm ID x 1400.00 mm

1шт.

8

KNV15770

HYD TUBE

1шт.

9

KNV14100

HYDRAULIC HOSE,12.70 mm ID x 1400.00 mm

1шт.

10

KNV15780

HYD TUBE

1шт.

11

KNV14100

HYDRAULIC HOSE,12.70 mm ID x 1400.00 mm

1шт.

Выбрано товаров: 11
